Features:
- Built-in NFCA Headphone Amplification.
- Premium ES9068AS DAC chip.
- Supports Hi-Res Bluetooth connectivity, LDAC, APTX HD, AptX Adaptive, ApX LL, AptX, AAC, SBC transmission protocols.

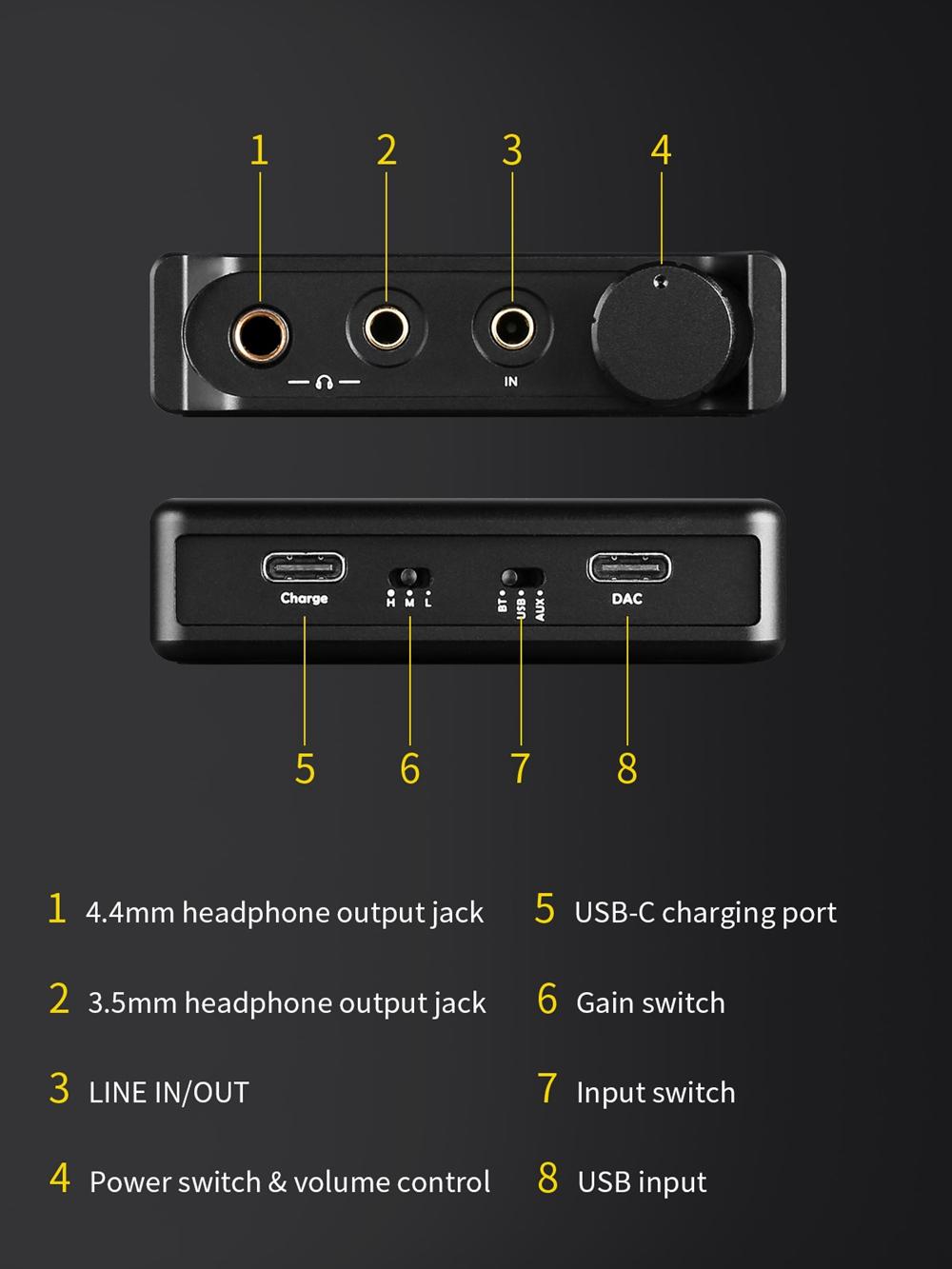

- Versatile Connectivity with USB+BT+Aux Inputs.
- Dual Headphone outputs(4.4mm Bal+3.5mm SE).
- Three-level gain adjustment.
- Clean and Precise performance.
- Ultra-low THD+N.
- Powerful Output: 1200mWx2.
- High-Resolution Audio Signal Decoding(Supports PCM 768kHz and DSD512 natively over a USB connection).

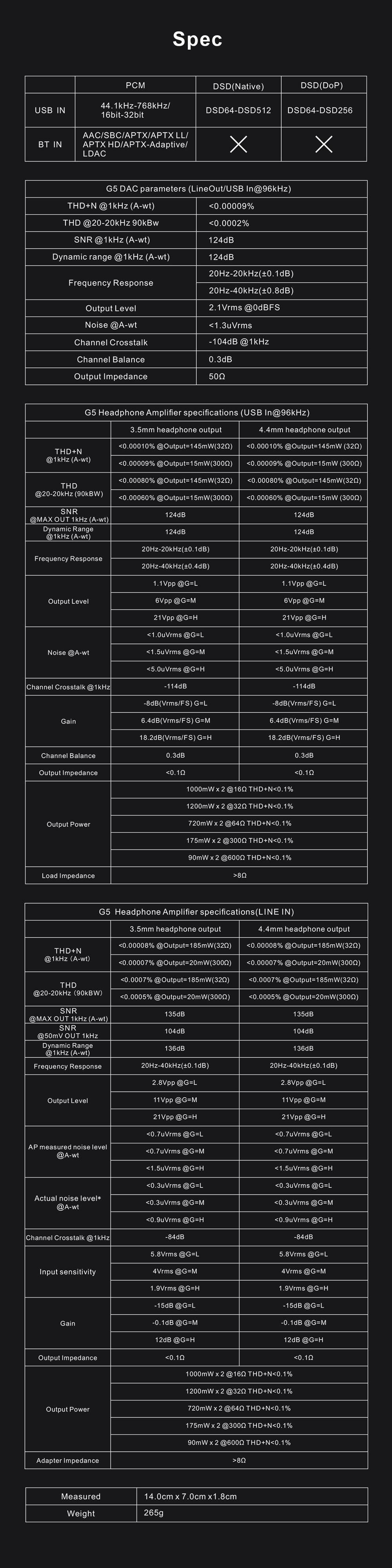

Technical Parameters:
- Output Power: 1.2Wx2@32Ω, THD+N <0.1%.
- Output Impedance: <0.1Ω.

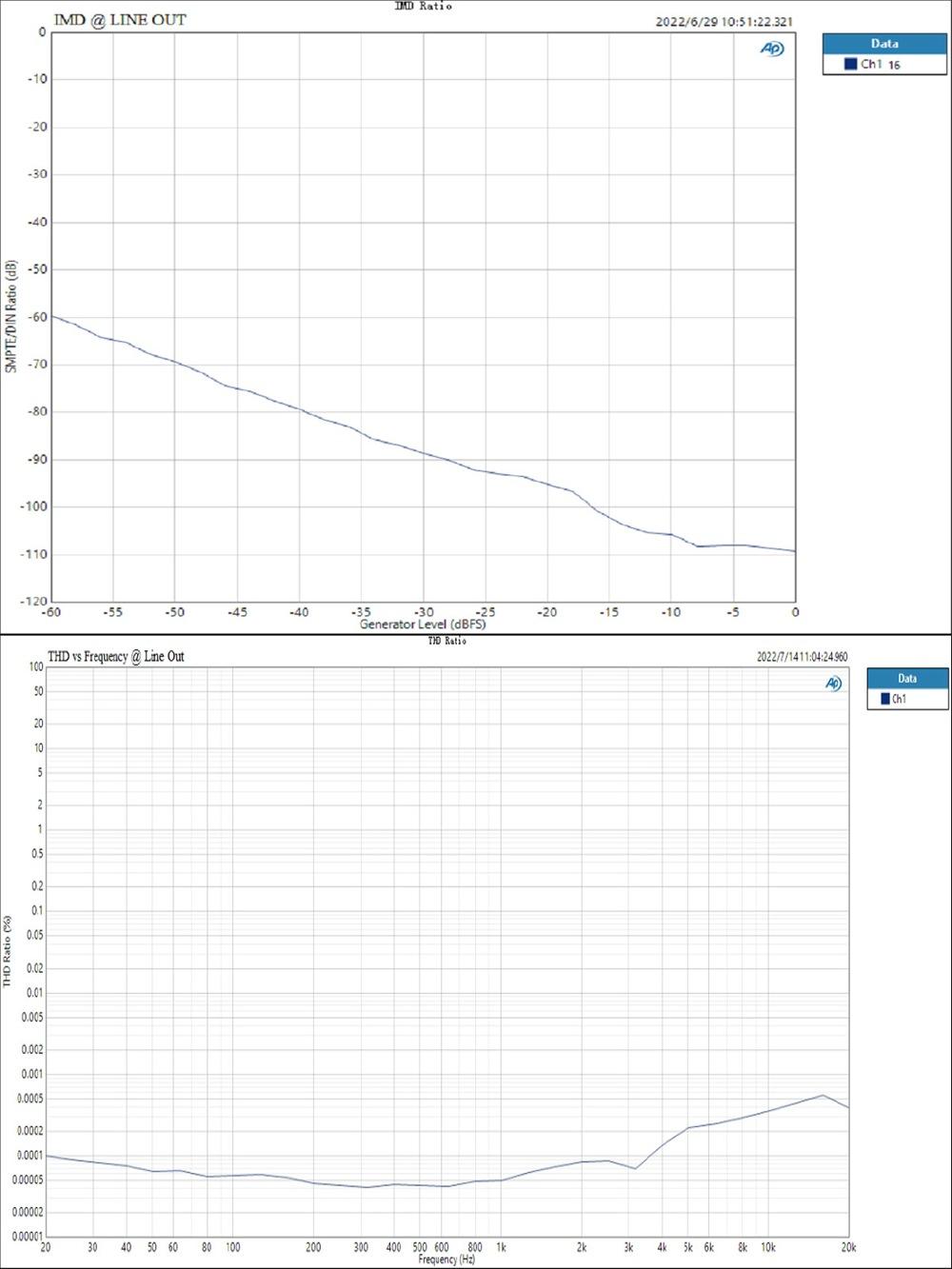

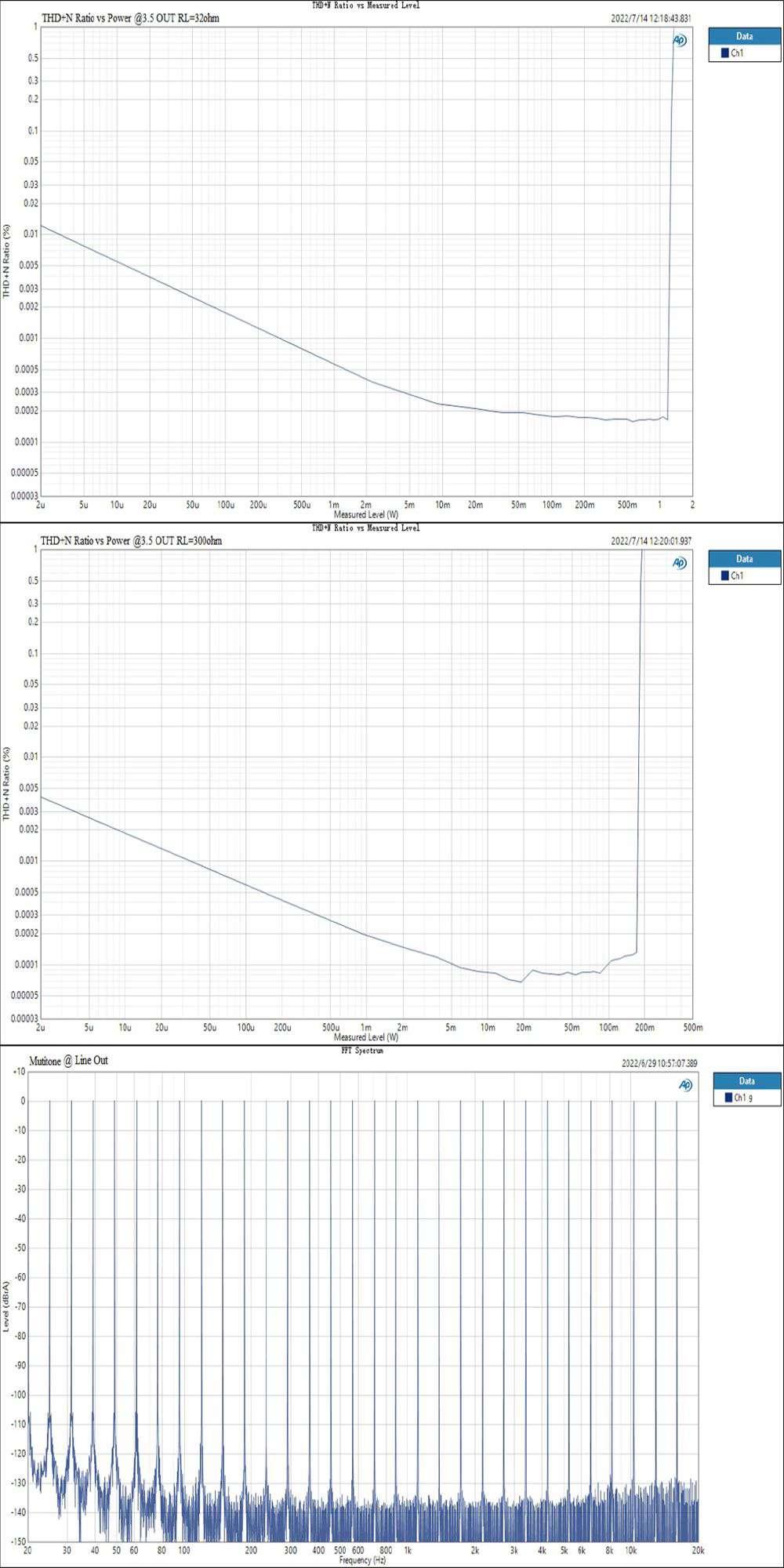

- THD+N(A-weighted): <0.00010%@145mW(32Ω).
- SNR: 124dB.
- DNR: 124dB.
- Gain Levels: -15dB(low gain), -0.1dB(mid gain), 12dB(high gain).
- Output Level: 1.1Vpp(low gain), 6Vpp(mid gain), 21Vpp(high gain).
- Noise(A-weighted): <1.0uVrms(low gain), <1.5uVrms(mid gain), <5.0uVrms(high gain).
- Channel crosstalk: -114dB@1kHz.
- Channel balance: 0.3dB.
- Load impedance: >8Ω.

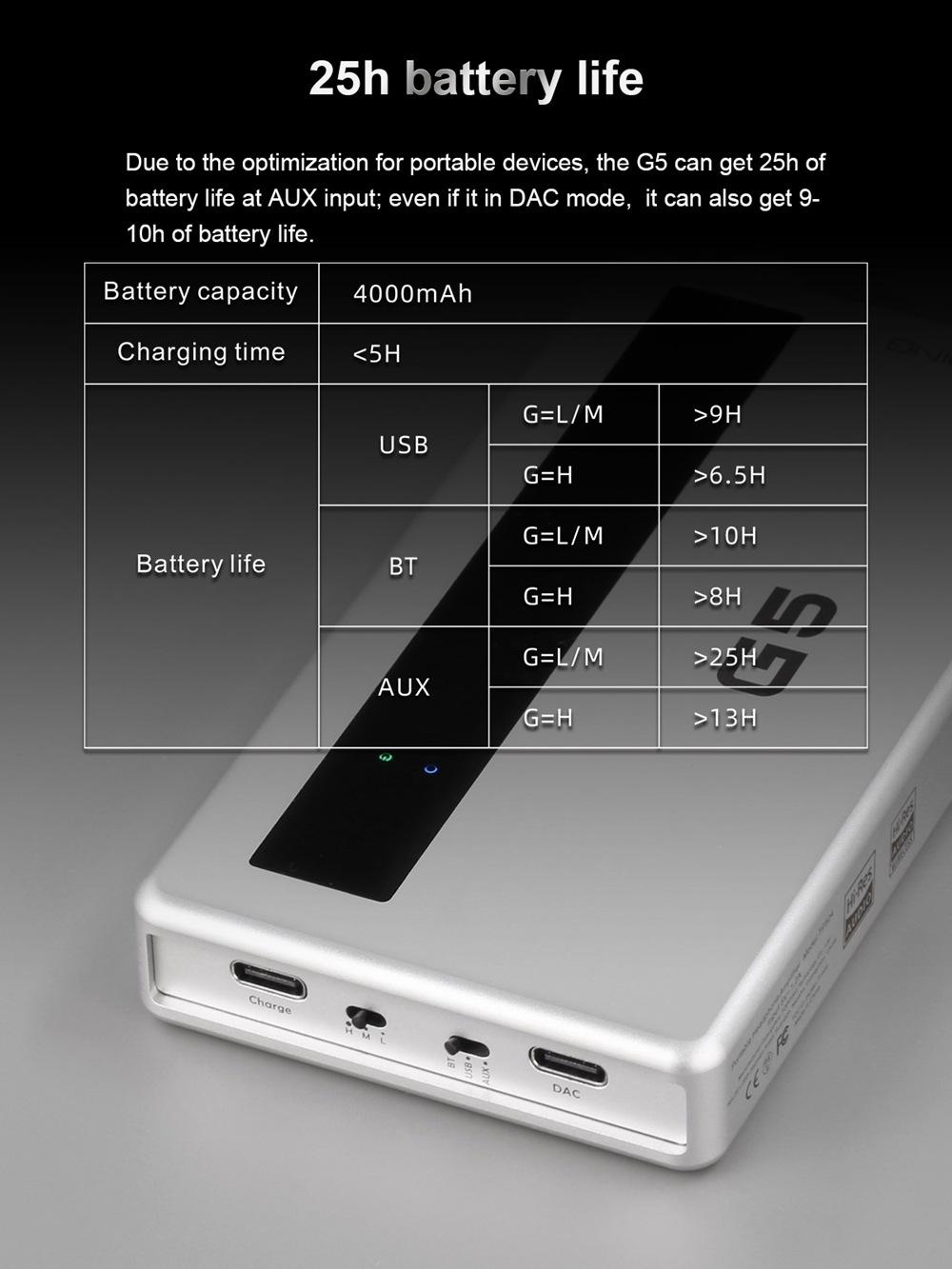

- Battery life: Up to 10H on USB, Up to 25H on Aux.

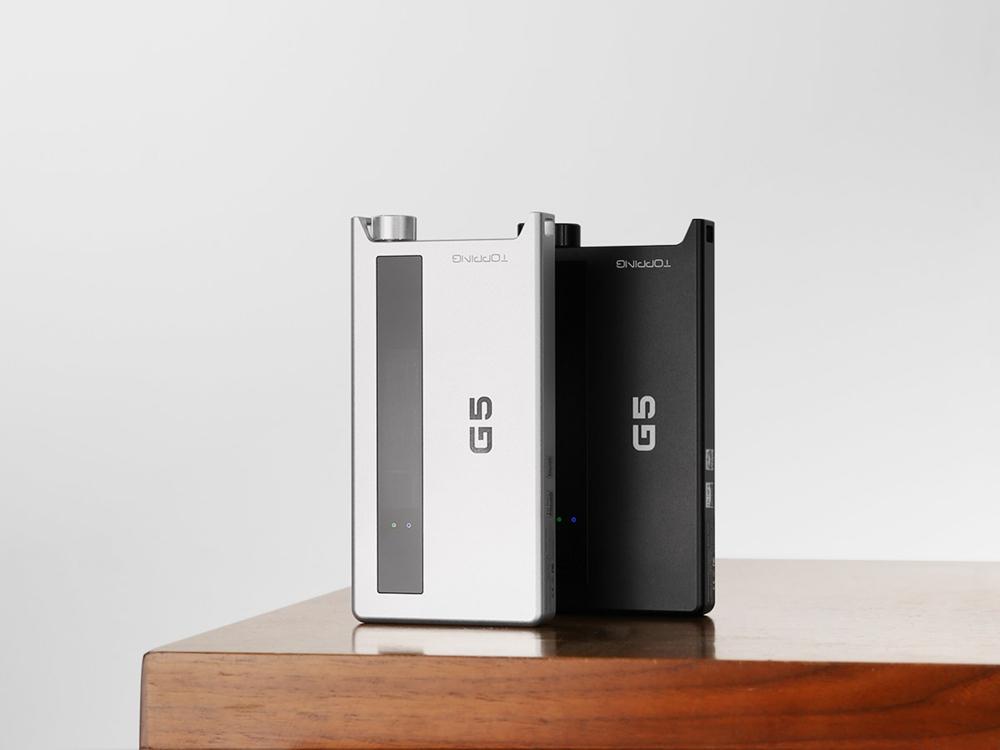

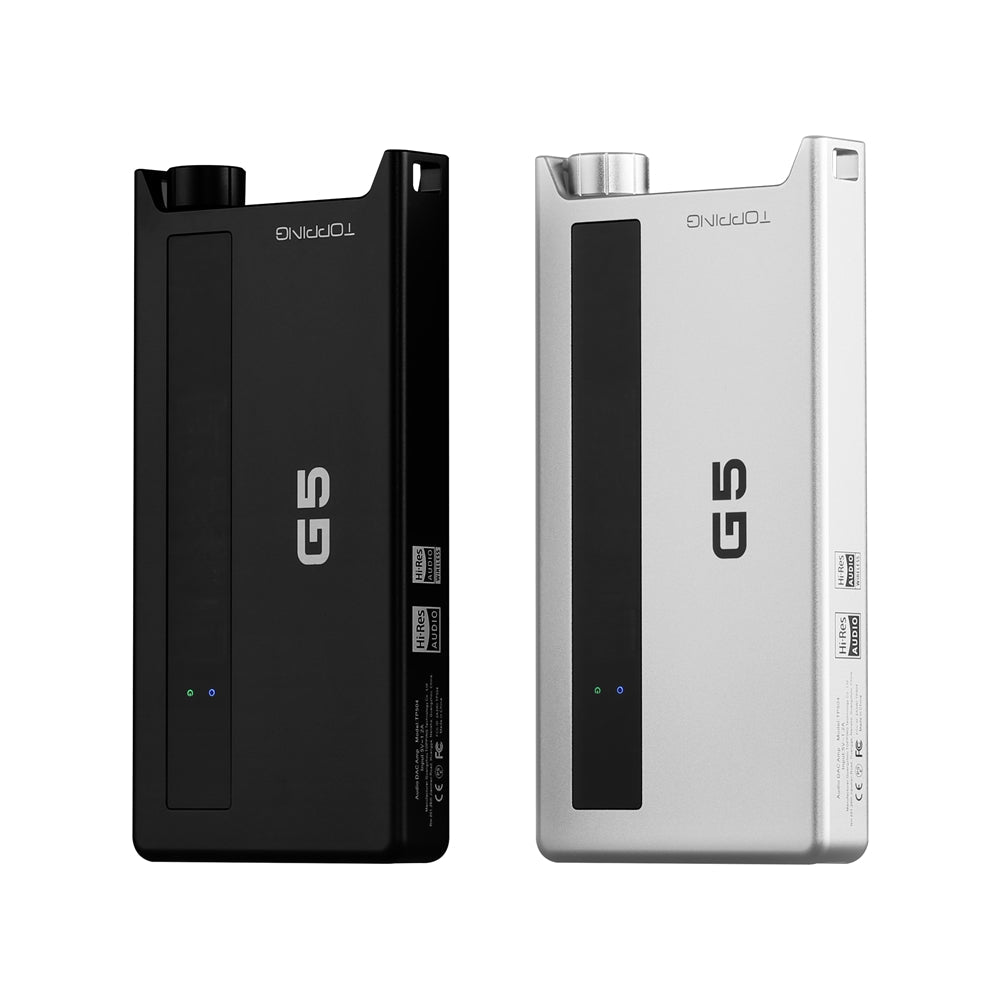

Presenting the all-new Topping G5 portable USB and Bluetooth DAC/AMP, an advanced device where portability meets performance with high-quality Sabre DAC, high-definition Bluetooth support, and powerful NFCA-based headphone amplification. Topping G5 serves as a one-point solution to all your portable needs with its exceptional Hi-Res audio signal decoding and powerful output!!

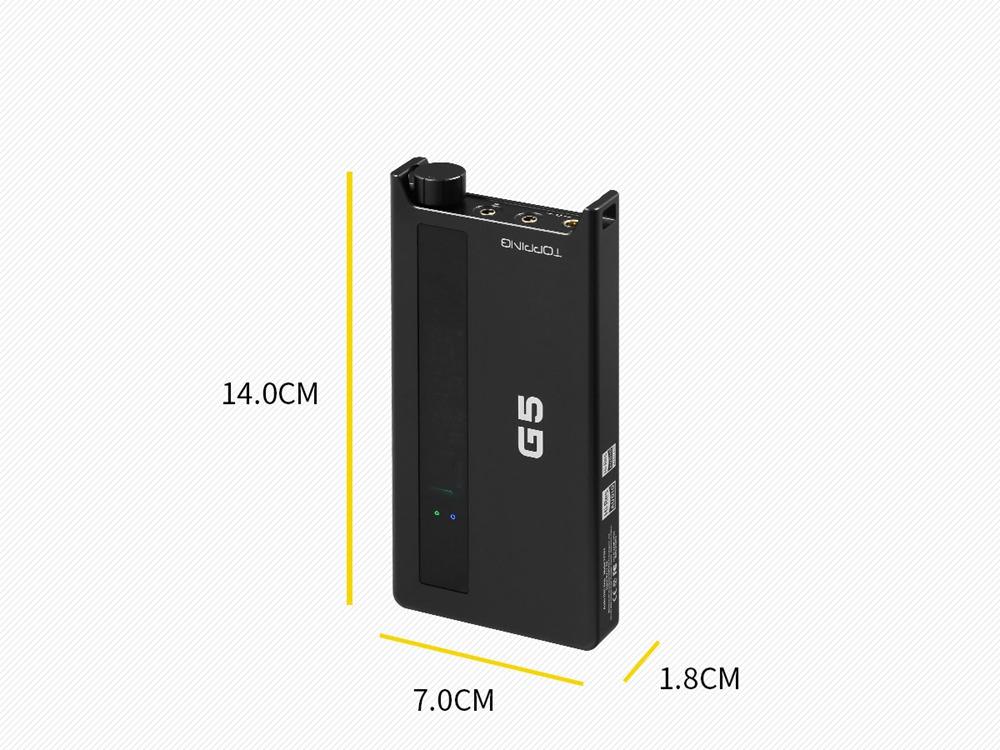

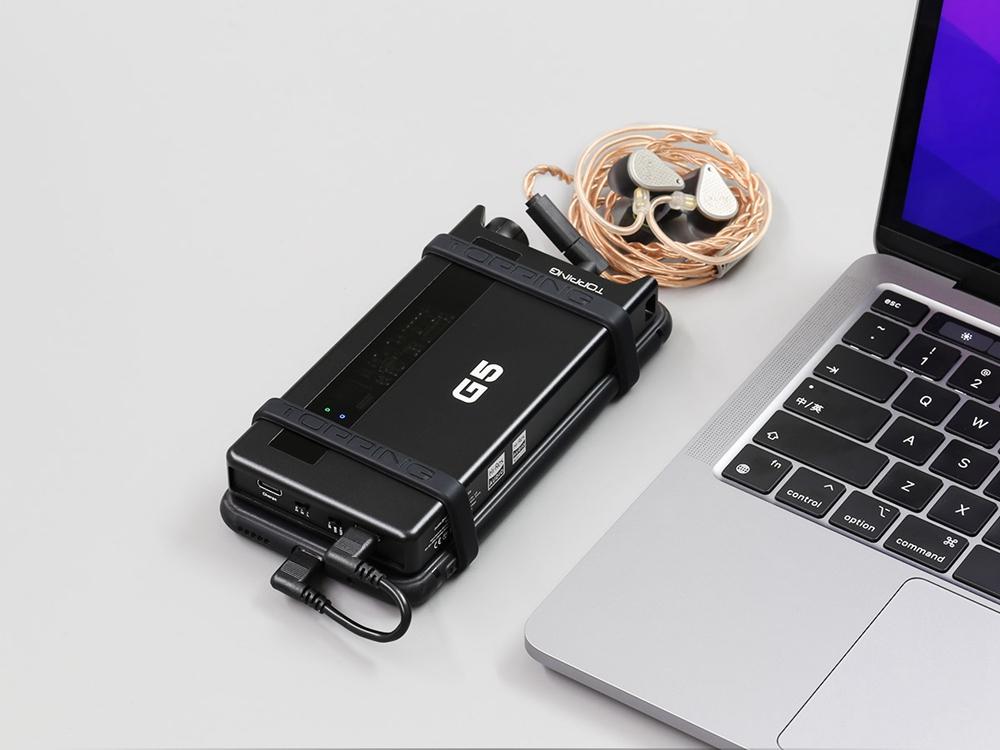

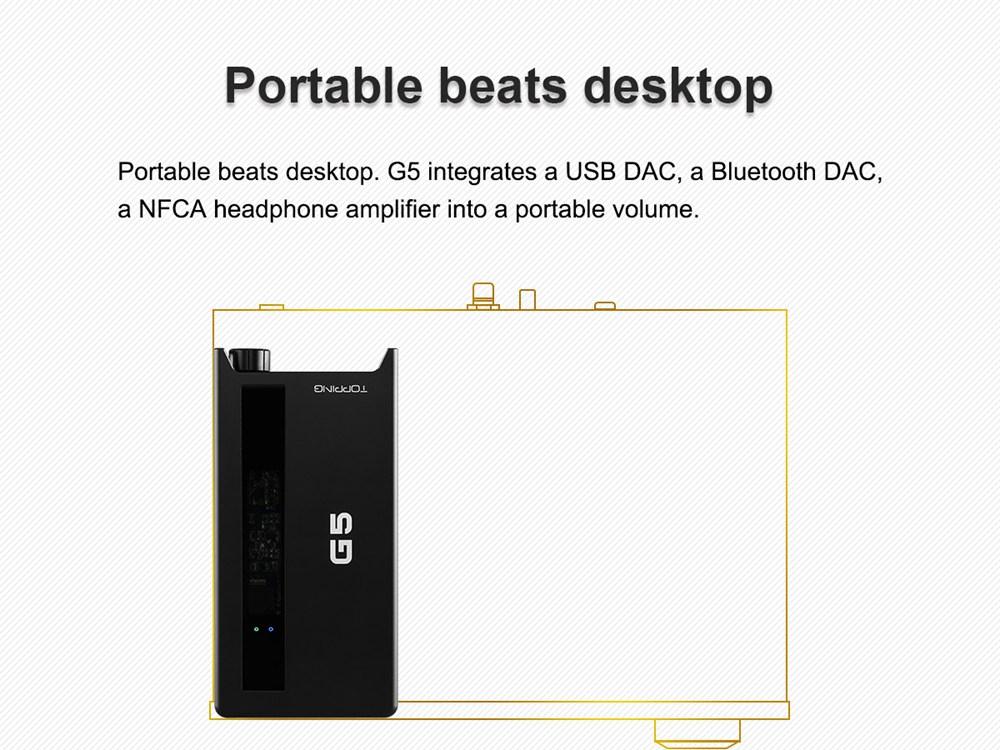

Everything You Need In A Compact Form Factor:
Topping G5 is a fully equipped device. It has a high-performance sub-flagship DAC, a powerful amplification module, and high-definition Bluetooth functionality. Topping has arranged all this in a super compact form factor allowing you to use the device anytime, anywhere you want!!
High-Definition Bluetooth Functionality:

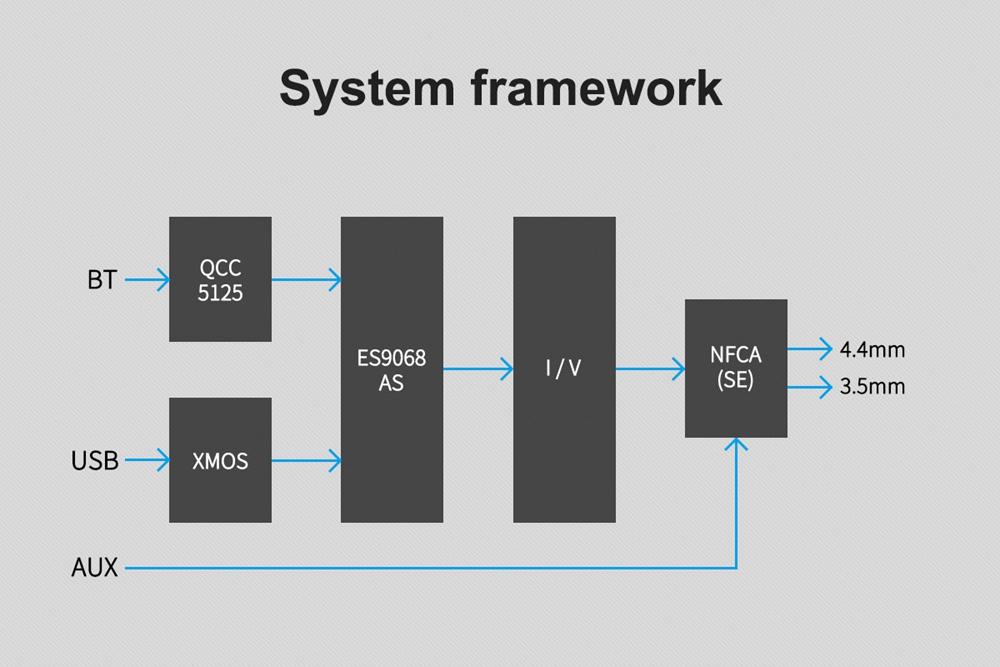

Topping G5 has got Hi-Res Audio wireless certification. It uses a new QCC5125 chipset that enables high-definition Bluetooth connectivity. It enables support for LDAC, APTX HD, AptX LL, AptX Adaptive, SBC, AAC, and wireless transmission protocols.

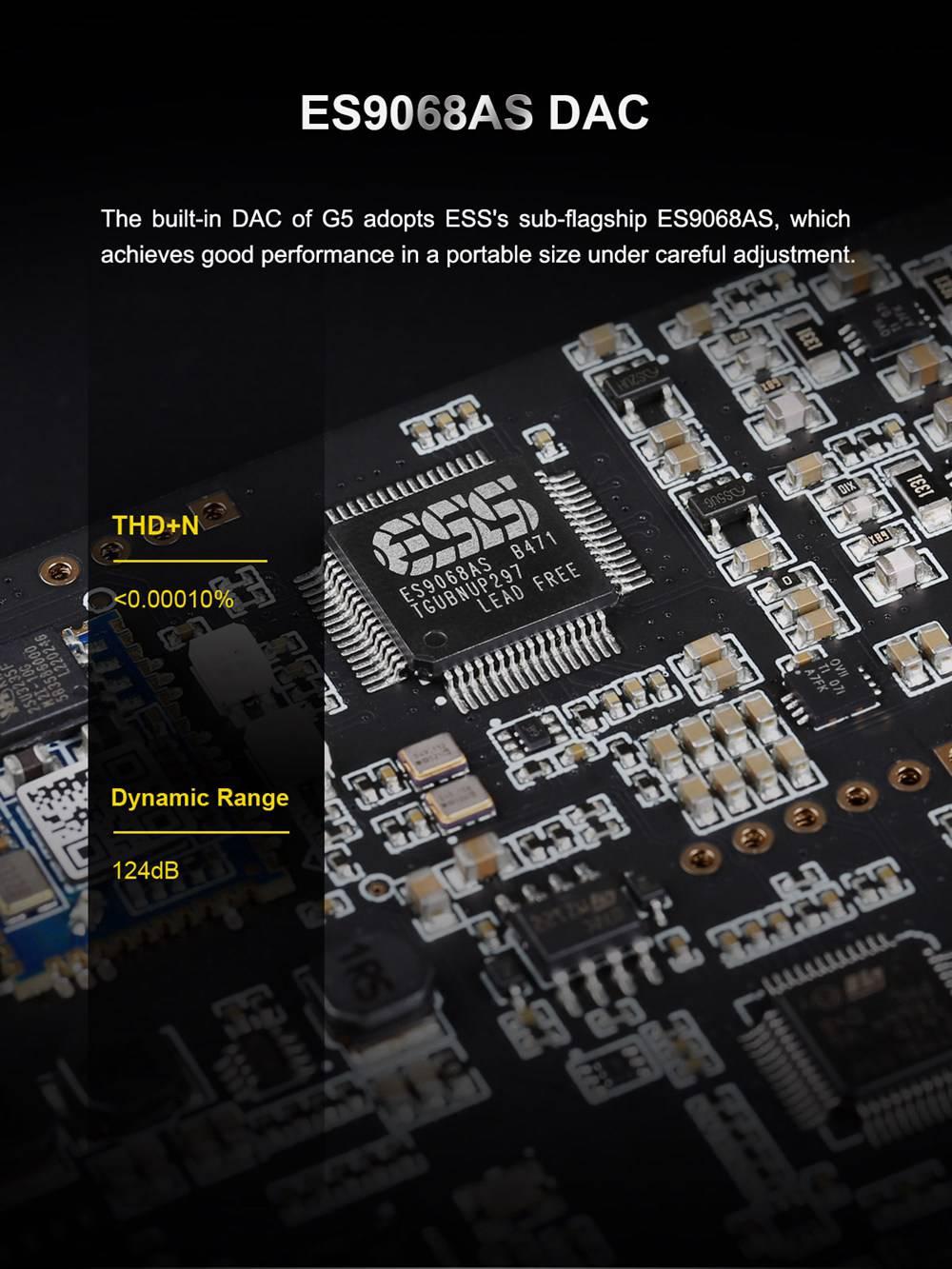

High-Performance Sabre DAC Chipset:
Topping G5 uses ESS’s sub-flagship ES9068AS DAC chipset which ensures quality performance with ultra-low THD+N and noise-free clean background while decoding Hi-Res audio signals. Via the USB input, Topping G5 supports high-resolution 32-bit/768kHz PCM and native DSD512 signals.

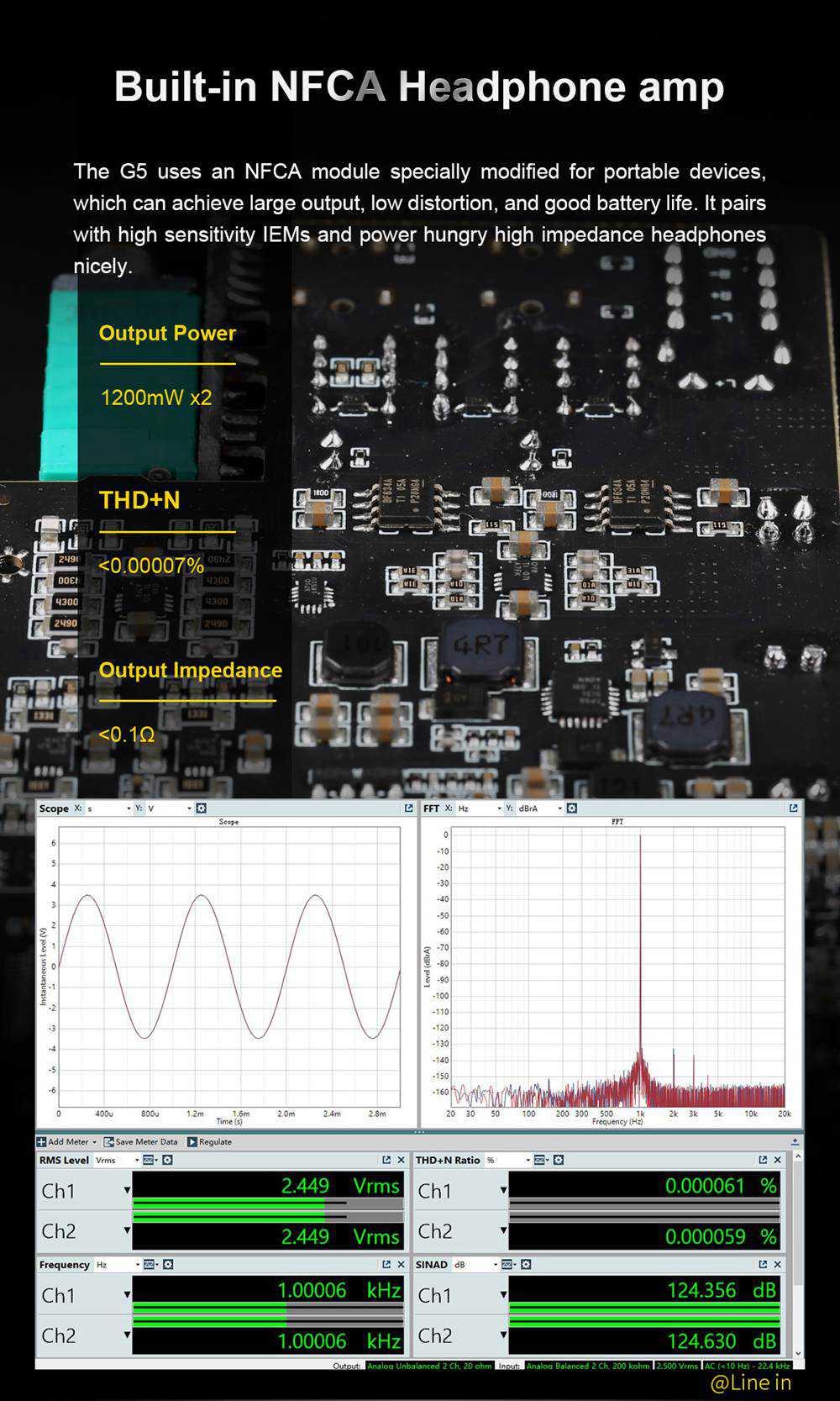

Powerful Amplification With NFCA Headphone Amplifier:
Topping G5 uses an NFCA module specially modified for portable devices. It produces powerful amplification with lower distortion and high efficiency. G5 outputs 1200mWx2 of clean power at 32Ω of impedance load.
Easily Connect With Sensitive As Well As Power-Hungry Headphones:
Topping G5 is an ideal portable DAC/AMP for both sensitive as well as power-hungry headphones. It has a three-level gain switch that allows for easy pairing with different IEMs and Headphones.

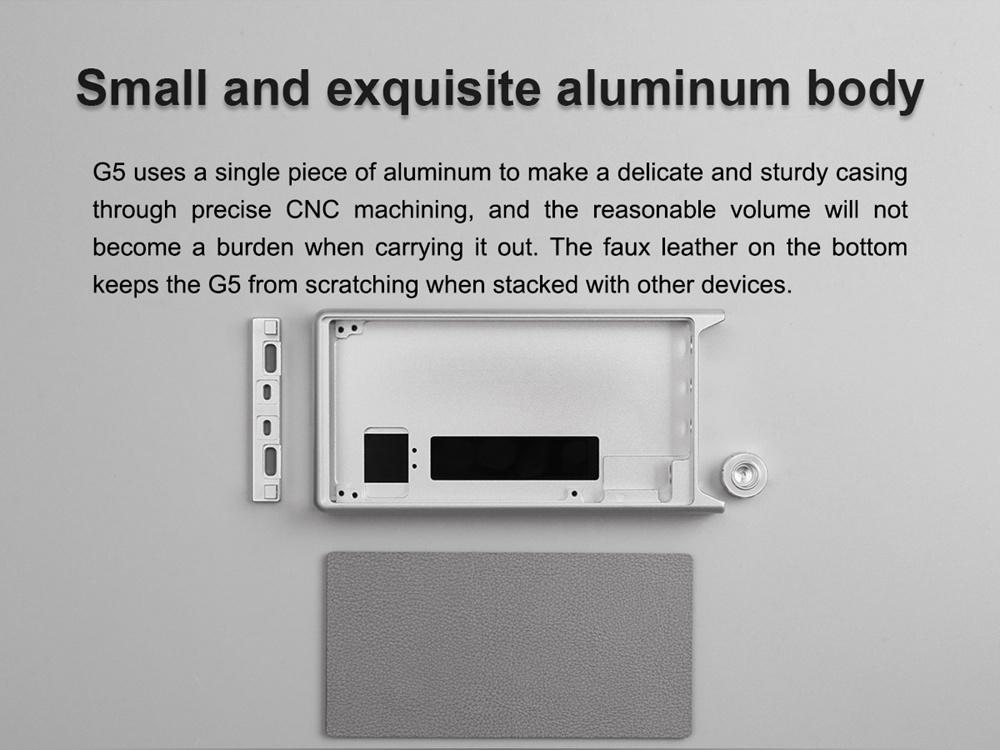

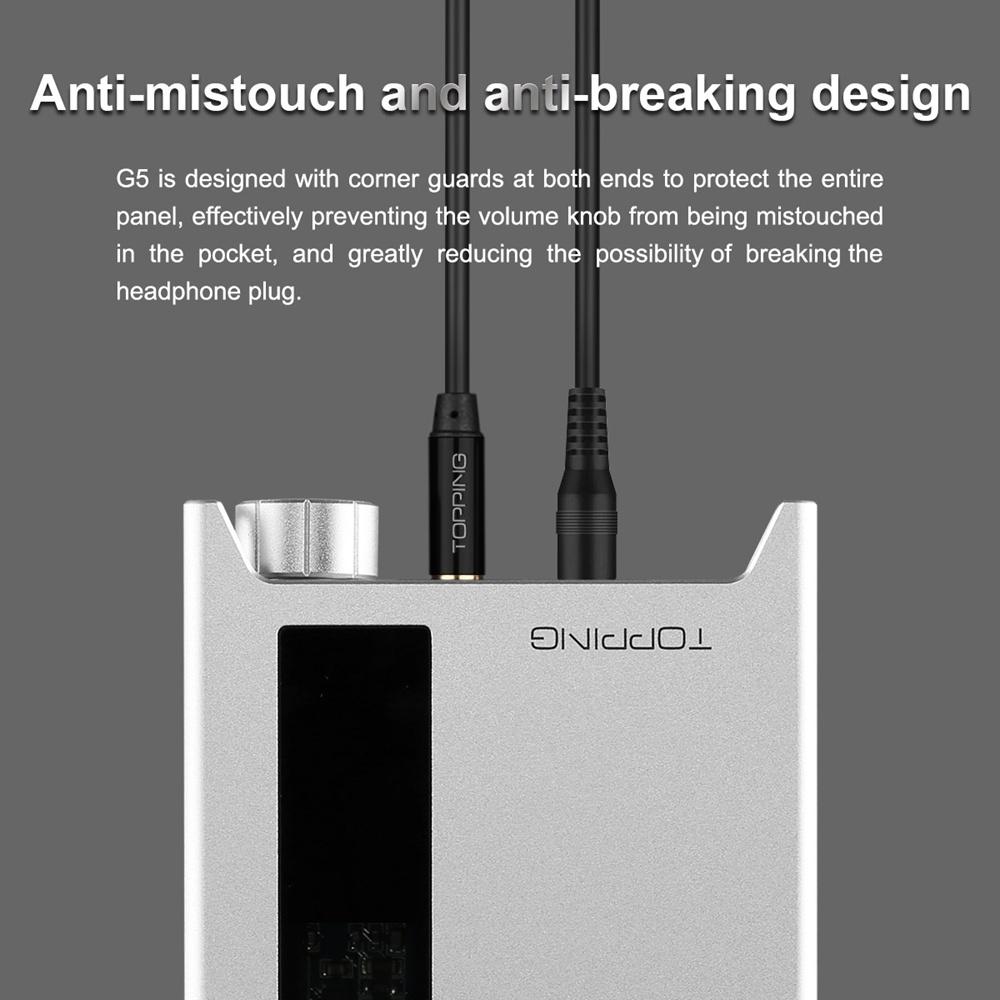

Exquisite Build With Aluminium Chassis:
Topping has designed the G5 with ultimate craftsmanship. They have made the chassis using high-quality CNC machined aluminum alloy material. The device is designed with corner guards at both ends to protect the entire panel and prevent the volume knob from being touched accidentally in the pocket.
