Forget everything you know about DACs. Yggdrasil is the world’s only closed-form multibit DAC, delivering 21 bits of resolution with no guessing anywhere in the digital or analog path. We’ve thrown out delta-sigma D/As and traditional digital filters to preserve the original samples all the way through from input to output. Let’s take a closer look:
Closed-Form Digital Filter Preserves Original Samples
Most DACs simply use the stock digital filters embedded in their D/A converters. But even the most sophisticated ones, using their own digital filter algorithms, don’t have what Yggdrasil has—a time- and frequency-domain optimized digital filter with a true closed-form solution. This means it retains all the original samples, performing a true interpolation. This digital filter gives you the best of both NOS (all original samples retained) and upsampling (easier filtering of out-of-band noise) designs.

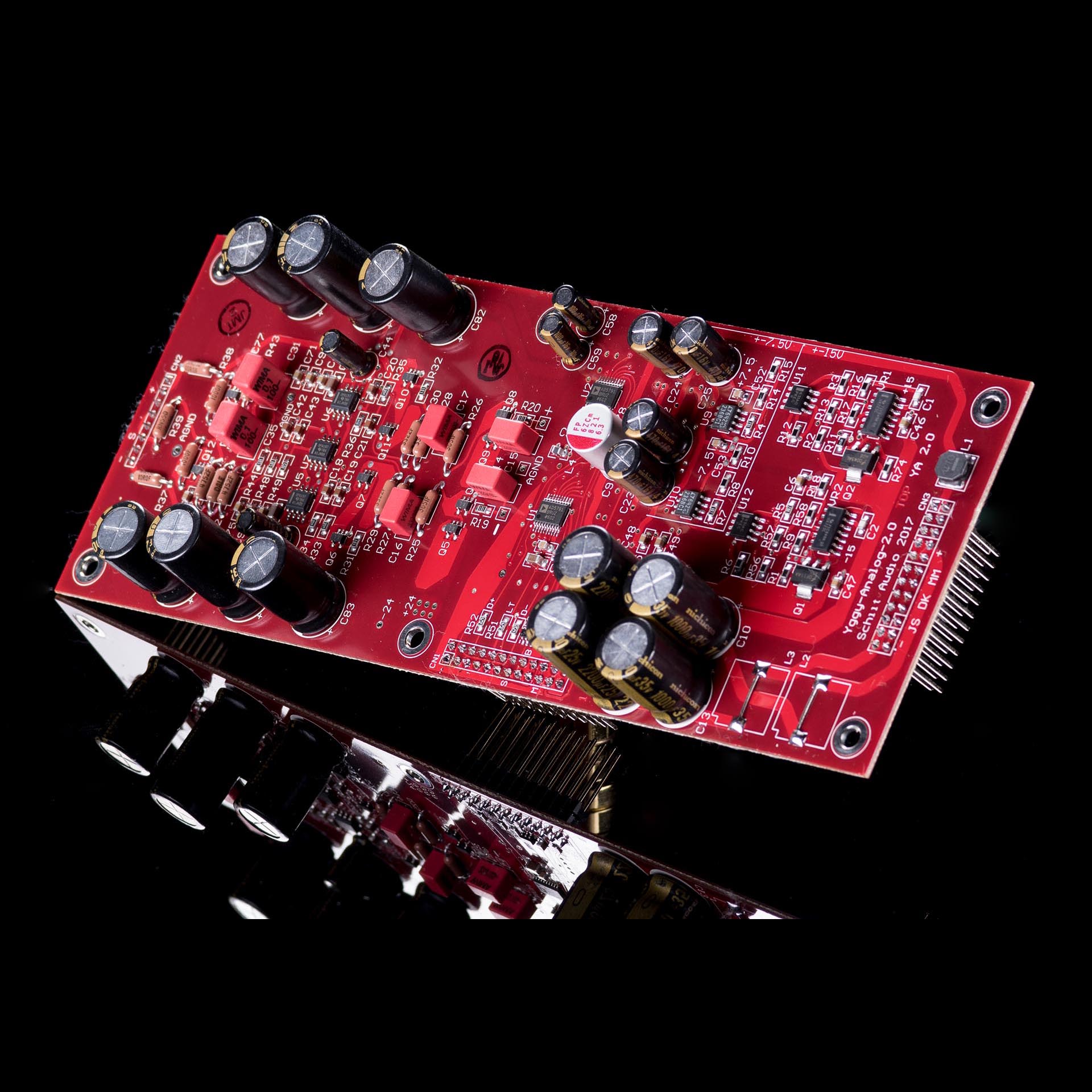

Mission-Critical D/A Tech, Discrete Class A Analog 2 Output
For MRI diagnoses, doctors don’t rely on the guesswork of “24 bit” or “32 bit” delta-sigma D/A converters. Instead, they choose the bit-perfect imaging of precision multibit DACs, like the Analog Devices AD5791. We chose this same critical technology for Yggdrasil. Now in Analog 2 form (shipping since late 2017), we’ve combined the output of four of these DACs with DC-coupled, low-noise, Class A JFET buffers and summers with high current output capability to drive long cable runs and low-impedance line inputs, such as 600 ohm professional gear.
USB, Elevated: Unison USB™, Plus Adapticlock Advanced Input Optimization
Yggdrasil now includes Unison USB, our own USB input based on a general-purpose PIC32 microprocessor, using precision local clocks and complete electromagnetic and electrostatic isolation. No more off-the-shelf USB for us—this unique, UAC2-compliant input provides the highest performance and lowest power draw of any USB input we’ve offered to date. Yggdrasil accepts up to 5 digital inputs and carefully manages them with our Adapticlock™ clock regeneration system. Adapticlock is the most sophisticated clock management system in the world. It assesses the quality of all inputs, measures their incoming center frequency and jitter, and automatically routes the input to the best clock regeneration system.
Designed and Built in California
By “designed and built in California” this is what we mean: the vast majority of the total production cost of Yggdrasil—chassis, boards, transformers, assembly, etc—goes to US companies manufacturing in the US. Our chassis are made minutes from our facility. Our PCBs are done just over the hill from us, or done in NorCal. Our transformers are also made in California.
Thông số kỹ thuật
|Input Capability||up to 24/192 for all inputs|
|Input Receiver, SPDIF||AKM AK4113|
|Input Receiver, USB||C-Media CM6631A|
|Clock Management||Bitperfect clock management at all native sample rates via Adapticlock analysis and VCXO/VCO regeneration, plus asynchronous USB Gen 5 module|
|Digital Filter||proprietary Schiit bitperfect closed-form digital filter implemented on Analog Devices SHARC DSP processor|
|D/A Conversion IC||Analog Devices AD5791BRUZ x 4 (2 per channel, hardware balanced configuration)|
|Analog Stage||Fully discrete, DC coupled Class A FET buffers optimized for high current output and fully discrete, Class A FET summing stages for single-ended output|
|Output Impedance||75 ohms|
|Frequency Response, Analog Stage||20Hz-20Khz, +/-0.1dB, 0.5Hz-200KHz, -1dB|
|Maximum Output||4.0V RMS (balanced), 2.0V RMS (single-ended)|
|THD||Less than 0.005%, 20Hz-20KHz, at full output|
|IMD||<0.005%, CCIF, at full output SNR: > 119dB, referenced to 2V RMS|
|SNR||> 119dB, referenced to 2V RMS|
|SNR||> 119dB, referenced to 2V RMS|
|Power Supply||Two transformers (one for digital supplies, one for analog supplies) plus one input choke for discrete, dual mono, shunt-regulated analog +/-24V supply, plus 12 separate local regulated supplies for DACs and digital sections, including high-precision, low-noise LM723 regulation in critical areas|

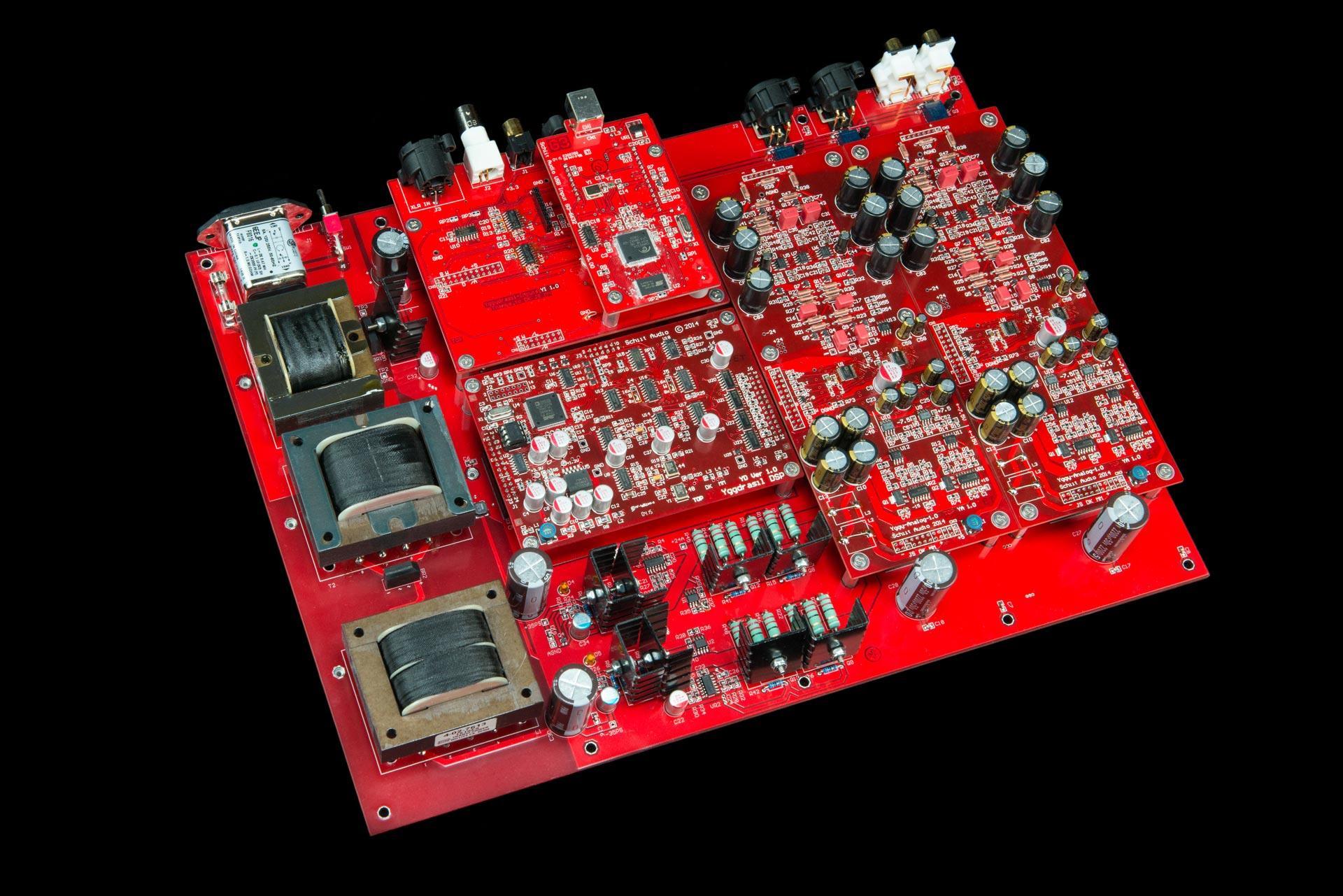

|Upgradability||Fully modular architecture. Separate digital input board, USB input board, DSP engine board, and DAC/analog output boards|
