Schiit Ragnarok

Thương hiệu

52.800.000

Bảo hành

Bảo hành 36 tháng

Hết hàng

Nguồn điện: 230VAC

Thông tin chi tiết

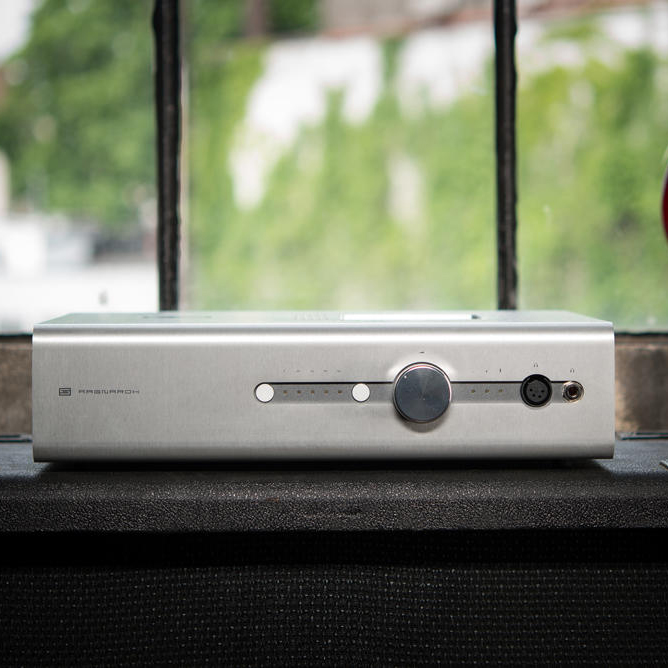

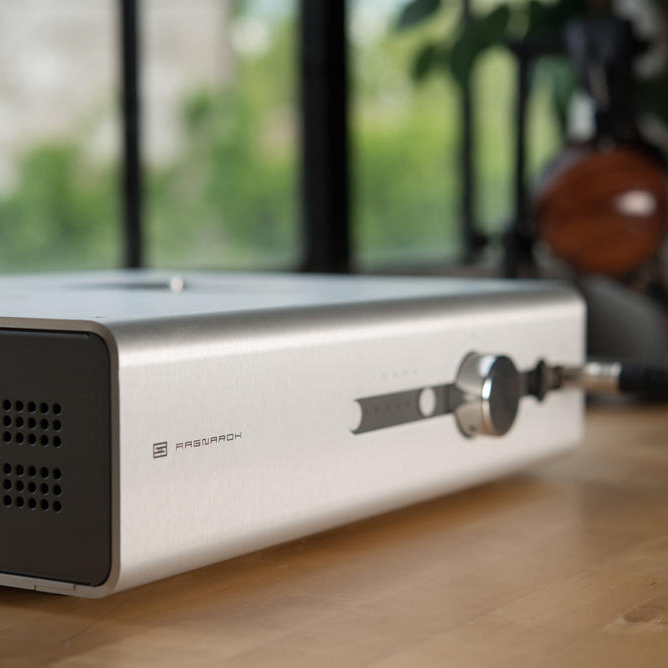

Ragnarok is the first truly universal amplifier, fully capable of powering everything from IEMs to loudspeakers. With up to 100 watts per channel into 4 ohms, 3 selectable gains, a sophisticated relay-switched stepped attenuator volume control, complete microprocessor management of all operational points, including bias and DC offset, and Schiit’s Crossfet™ circlotron-style output topology, Ragnarok completely befits its name—in Norse legend, Ragnarok was the “end of the world.”

From IEMs to Loudspeakers

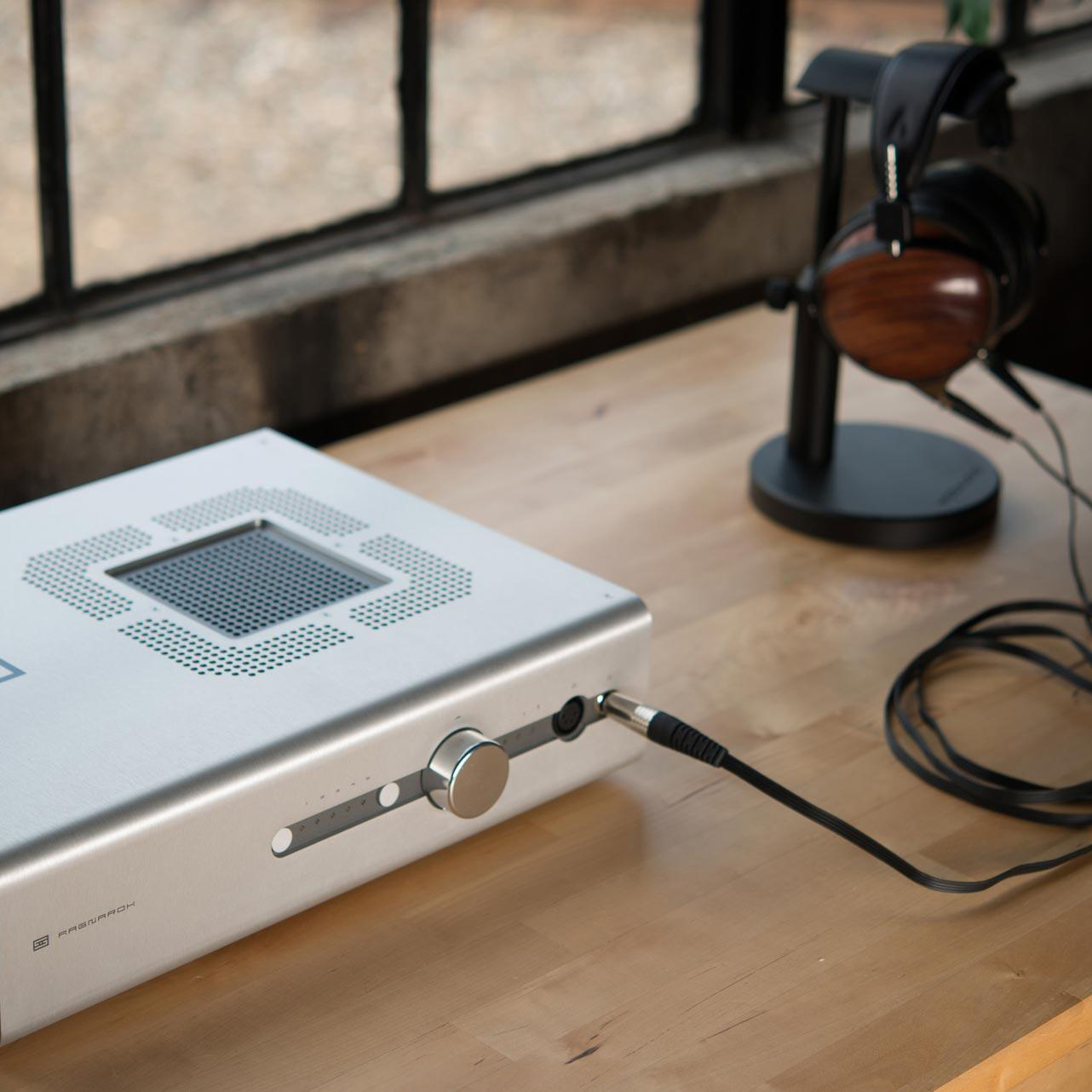

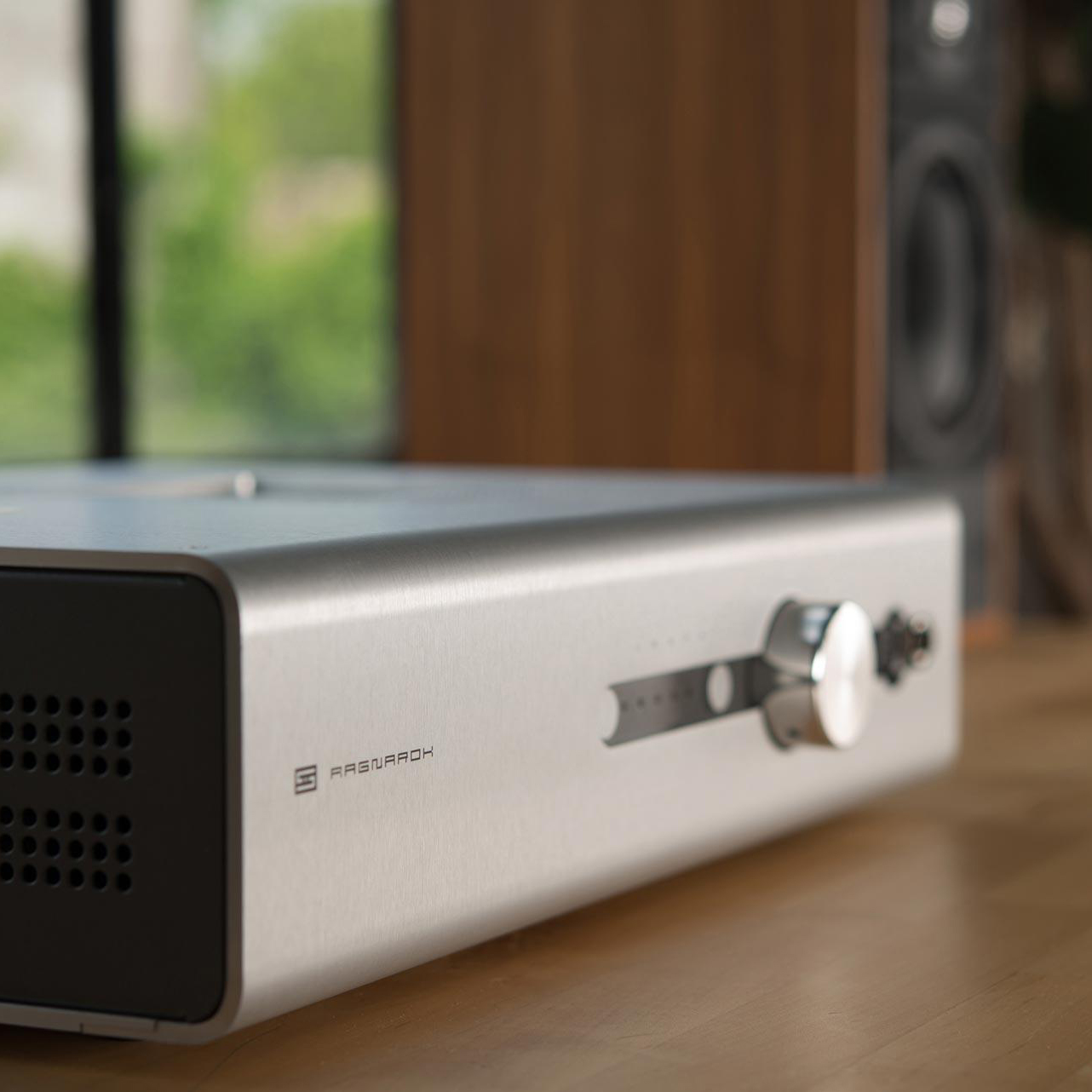

Go ahead. Plug in your sensitive headphones and set Ragnarok’s gain to 1. You’ll enjoy a silent background, and the fine control that a 64-step attenuator can provide. Or run it with the most power-hungry orthos you know. With gain set at 20, and 15W RMS into 32 ohms, you’re ready for an amazing performance. Speakers? No problem. With 60W per channel into 8 ohms, Ragnarok delivers amazing performance with most popular speakers.
A Complete Integrated Amp
Ragnarok includes 5 relay-switched inputs—two balanced and three single-ended, as well as balanced and single-ended preamp outputs for use as a preamp. For outputs, both balanced and single-ended outputs are provided for headphones, and balanced speaker terminal outputs for loudspeakers.
Nothing In the Signal Path Except Signal
Ragnarok is an “intelligent” amplifier, using a microprocessor to oversee every aspect of its operation—from quiescent bias, to DC offset, to complete fault protection. It’s also designed so that any major problem mutes all the outputs and reverts the amp to its low-gain, zero volume mode. This means we can dispense with coupling caps and DC servos entirely, for a gain stage that has nothing in the signal path—except for your music.
Designed and Assembled in USA
By “designed and assembled in USA” this is what we mean: the vast majority of the total production cost of Ragnarok—chassis, boards, transformers, assembly, etc—goes to US companies manufacturing in the US. Our chassis are made minutes from our facility. Our PCBs are done just over the hill from us, or done in NorCal. Our transformers are also made in California. You get the picture.
Xem thêm

Thông số kỹ thuật



Frequency Response 20Hz-20Khz, -0.25db, 2Hz-110KHz, -3dB
Maximum Power
  • 4 ohms: 100W RMS per channel
  • 8 ohms: 60W RMS per channel
  • 32 ohms: 15W RMS per channel
  • 50 ohms: 10W RMS per channel
  • 300 ohms: 1.7W RMS per channel
  • 600 ohms: 850mW RMS per channel
  • 50 ohms: 10W RMS per channel
THD Less than 0.006%, 20Hz-20KHz, at 1V RMS
IMD Less than 0.008%, CCIF at 1V RMS, high gain mode (worst case)
SNR More than 103db, unweighted, referenced to 1V RMS, in gain = 1 mode
Crosstalk Less than -80dB, 20Hz-20KHz
Output Impedance 0.03 ohms
Input Impedance 10K ohms
Gain
  • 20 (26dB)
  • 5 (14dB)
  • 1 (0db)
Topology Fully discrete Crossfet™ circlotron-style output stage with solid state voltage gain stage, microprocessor management of quiescent current and DC offset, as well as discrete summing stages for single-ended output
Protection Microprocessor monitoring of fault conditions including DC, overcurrent, and transient phenomena, with relay muting on any fault
Power Supply 400VA transformer with 4 separate circlotron output rails, plus 56VA separate transformer for high voltage rails; seven separate regulated supplies for front end and control section; over 100,000uF filter capacitance total
