Schiit Modi Multibit

Thương hiệu

6.600.000

Bảo hành

Bảo hành 12 tháng

Hết hàng

Nguồn điện: 230VAC

Thông tin chi tiết

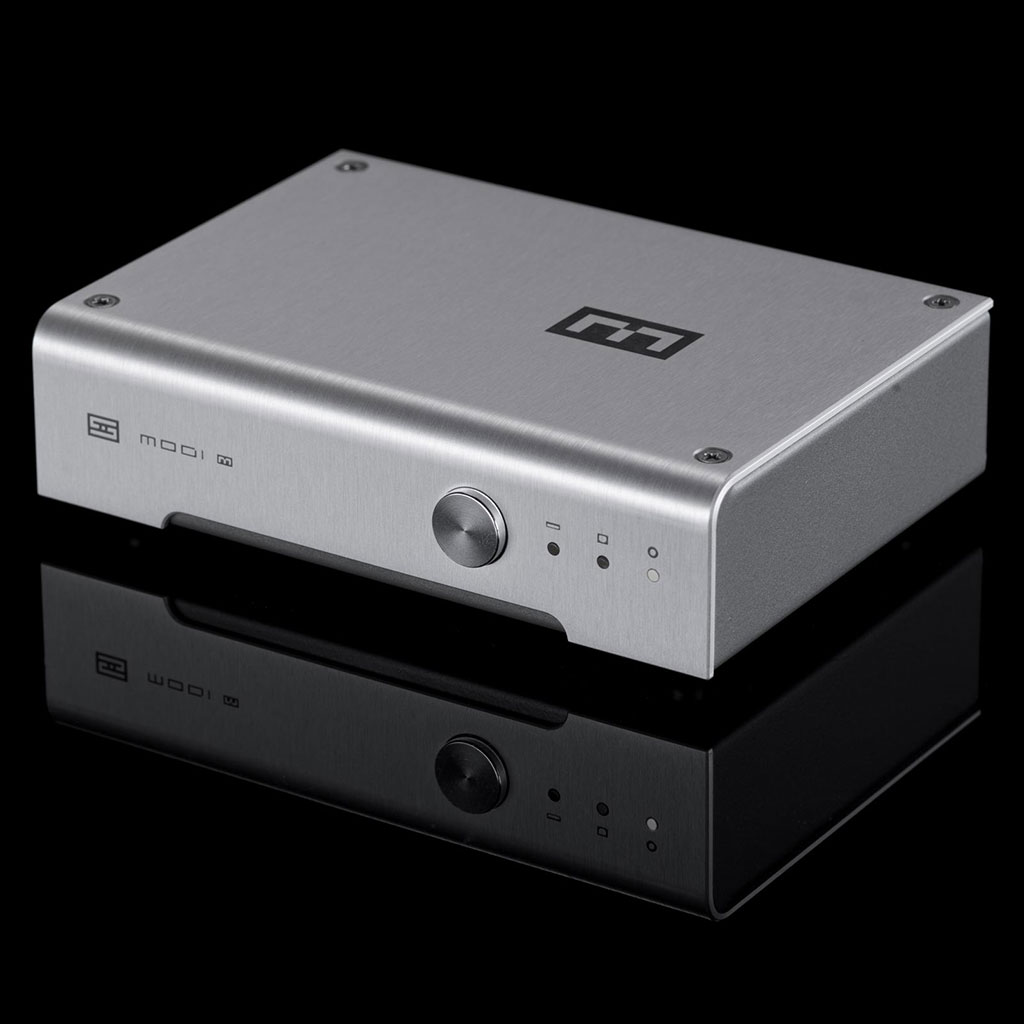

The Modi twins are two tiny DACs that really deliver. Whether you want better sound from your computer, your tablet, your CD player, or many other sources, Modi 3 delivers. Or, choose Modi Multibit—the most affordable member of the Schiit Multibit DAC family.

Modi Multibit: The Most Affordable True Multibit™ DAC
Modi Multibit is the most affordable multibit DAC with a modern architecture—from any manufacturer, from any country in the world. Featuring Schiit’s unique digital filter, and using the Analog Devices AD5547 multibit DAC, Modi Multibit smashes the high-price barrier in multibit DACs. Like Modi 3, Modi Multibit accepts USB, optical, and coaxial digital inputs.

Need Volume Control? No Problem.
If you’re using headphones, just add a Magni for adjustable volume via its preamp outputs. No headphones? Just add a SYS Passive Preamp for analog volume control.

Xem thêm

Thông số kỹ thuật

Inputs: USB, Toslink SPDIF, Coaxial SPDIF
Sample Rates and Bit Depths: 16/44.1 to 24/192 via USB, Coax, and Optical

Input Receiver:

USB: C-Media CM6631A
SPDIF: AKM 4113

D/A Conversion IC: Analog Devices AD5547

Analog Summing, Active Filtering: Based on AD8512 with precision thin-film resistors, DC-coupled with DC servo

Output: RCA (single-ended)
Output Impedance: 75 ohms

Frequency Response: 20Hz-20KHz, +/-0.25dB

Maximum Output: 2.0V RMS

THD:  <0.006%, 20Hz-20KHz, at max output

IMD:  <0.007%, 20Hz-20KHz, CCIR

S/N: >104dB, referenced to 1.5VRMS, unweighted

Crosstalk: -80dB, 20-20kHz

Power Supply: Included 16VAC wall-wart with 100% linear power supply

Size: 5 x 3.5 x 1.25”

Weight: 1 lb
