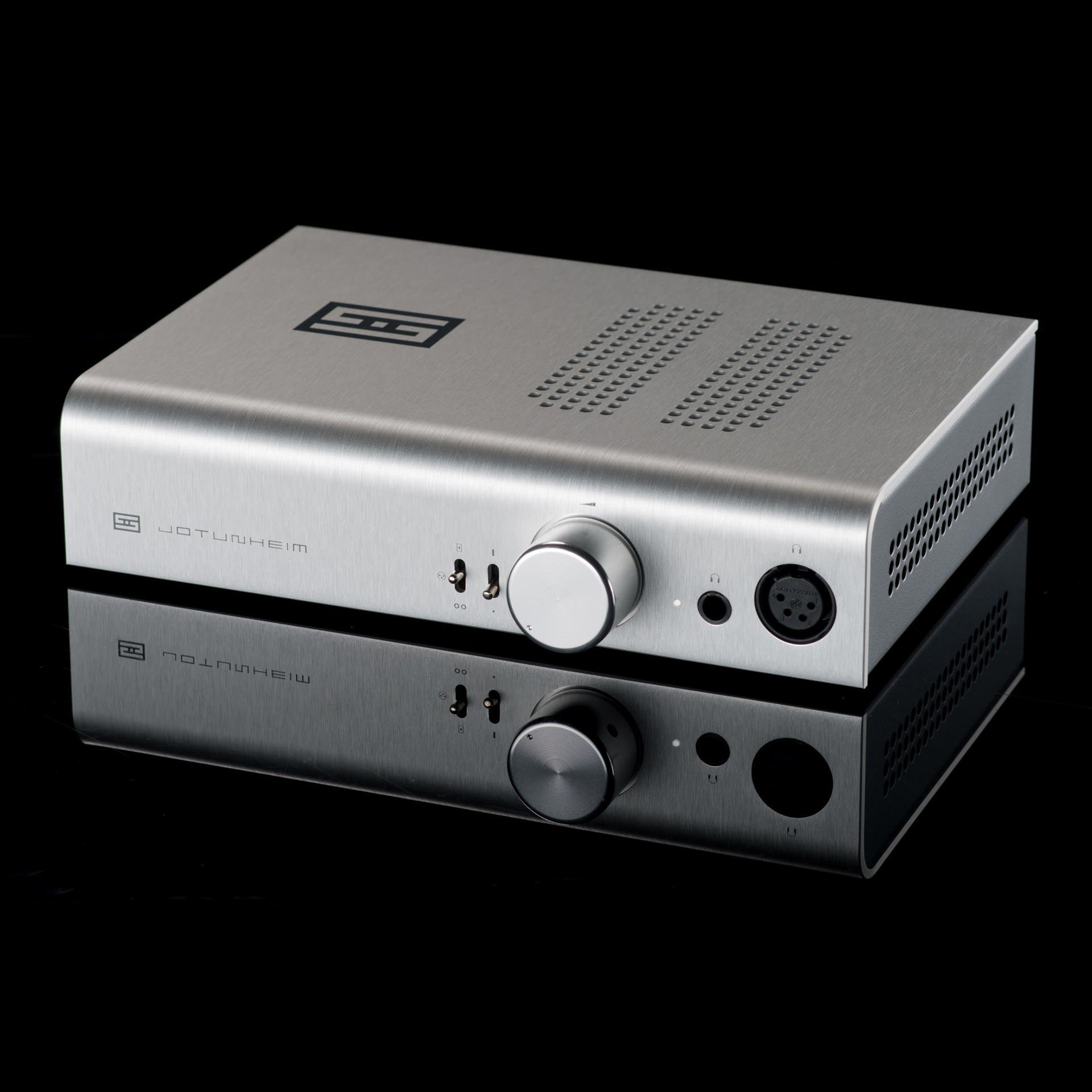

Schiit Jotunheim Multibit DAC

Thương hiệu

15.800.000

Bảo hành

Bảo hành 36 tháng

Hết hàng

Nguồn điện: 230VAC

Thông tin chi tiết

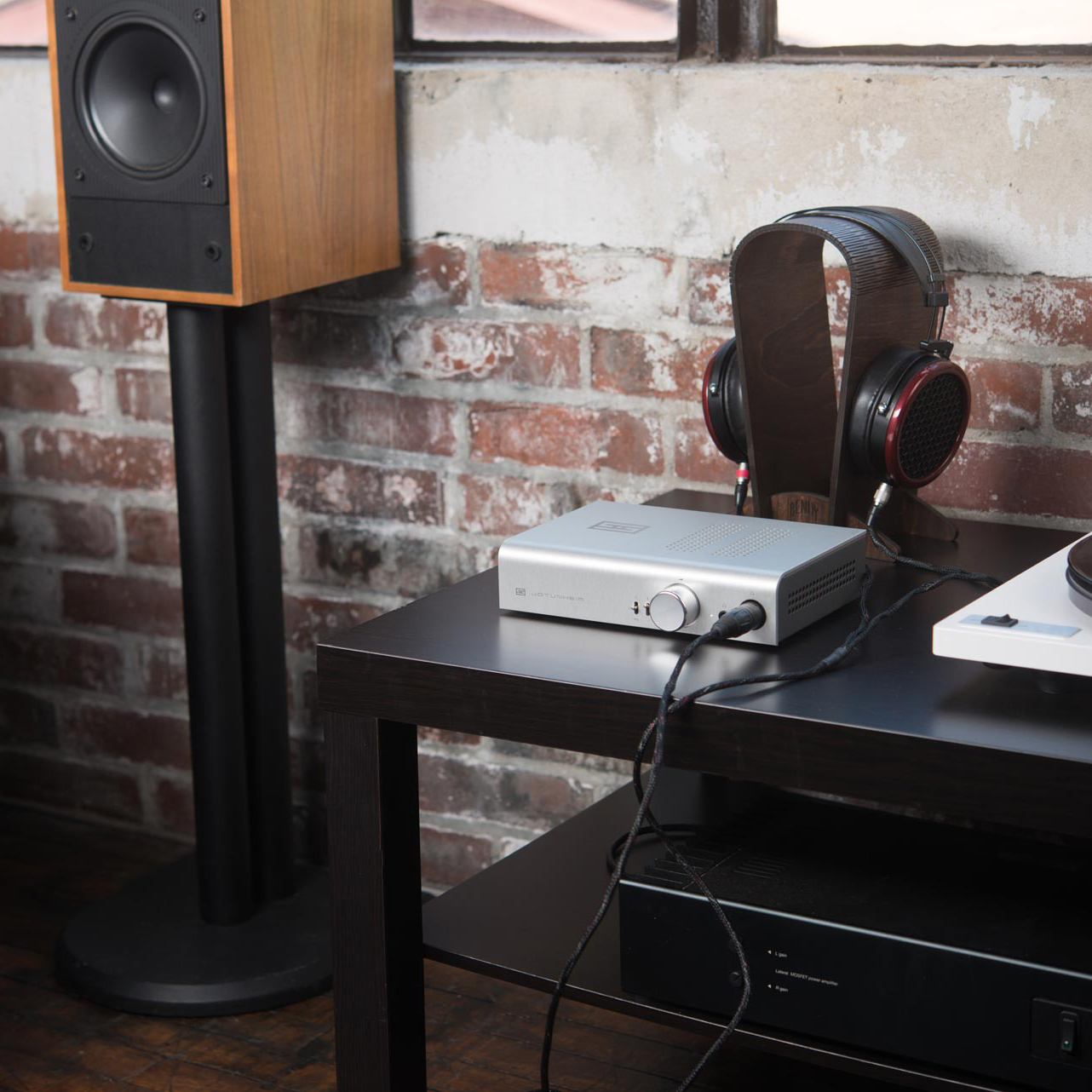

You asked for it—a one-box, do-all, no-excuses desktop system that’s ready for any headphone and powered monitor on the planet. Done. At the same time, why don’t we make the conventional, non-upgradable DAC/amp idea seem, well, a bit outdated? Done and done. Welcome to Jotunheim!

DAC/Amps: They’re Sooooo Last Decade
Don’t get stuck with dumpster fodder when DAC technology changes—choose Jotunheim and be ready for today…and the future. Configure Jotunheim to your needs: use it as just an amp, or add an internal DAC or phono preamp. In the future, you’ll be able to easily upgrade to a different module—maybe even something beyond a DAC or phono preamp.
Ready For Any Headphone
IEMs? Sure. HE-6? Sure. If this means nothing to you, just be confident that you can plug any headphone into Jotunheim and get great sound, with ultimate power and authority. Balanced or single-ended—it doesn’t matter. With 5W output into 32 ohms from the balanced outputs, Jotunheim has tons of power to spare.
Ready for Any Powered Monitor or Power Amp
Balanced and single-ended preamp outs mean that Jotunheim is ready for any powered desktop monitor—or to plug into those gigadollar monoblocks you’ve been eyeing.
Unrivaled Flexibility

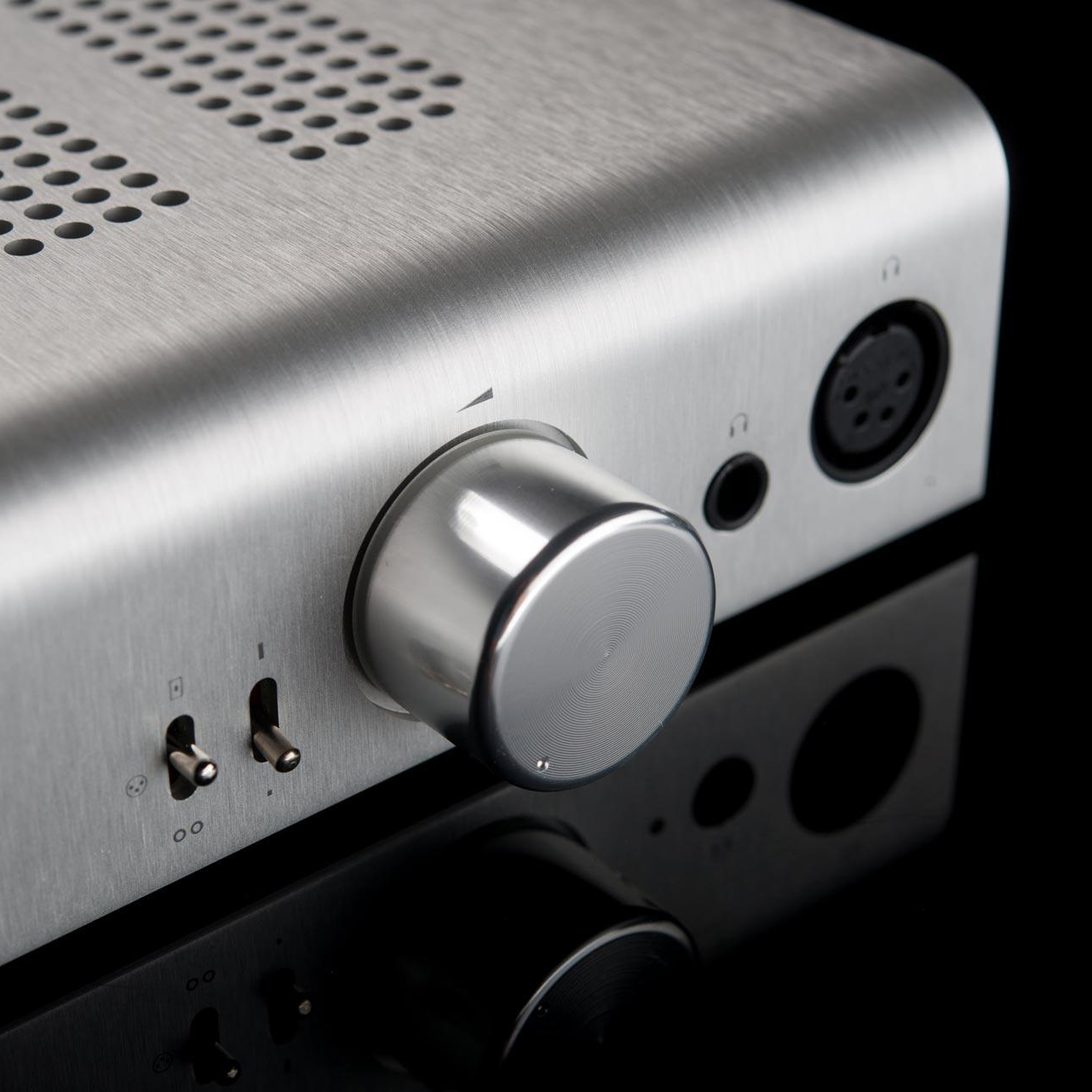

Select high or low gain with the flick of a front-panel switch, for compatibility with both easy-to-drive and hard-to-drive headphones. Select from two different DAC modules, a phono input module, or no module at all to tailor Jotunheim exactly to your needs.

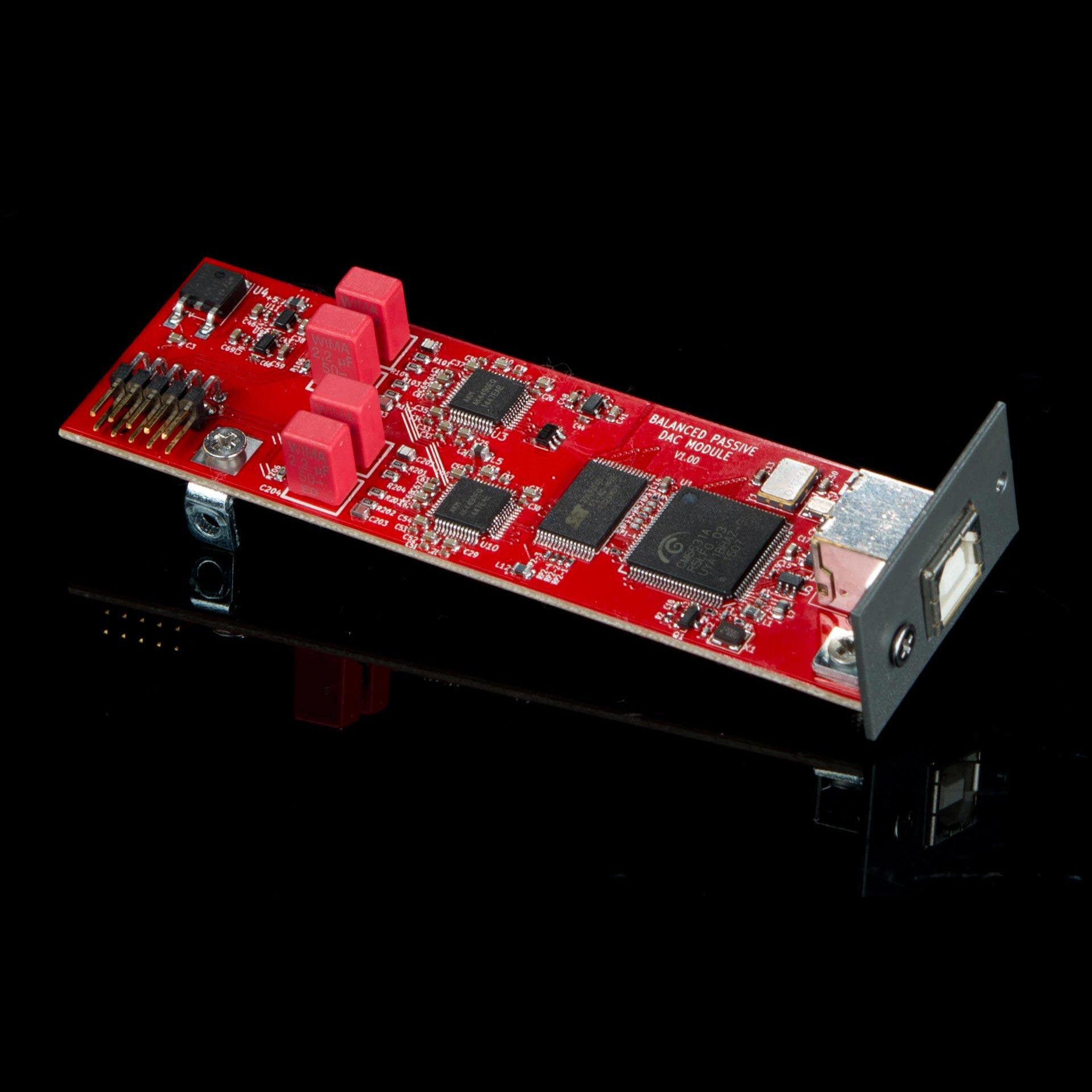

  • Multibit DAC. Choose the optional Multibit DAC Module to get Schiit’s unique digital filter and multibit DAC architecture, as used in Modi Multibit, for $200.
  • AK4490 DAC. Or choose the more affordable AK4490 DAC module for a world-class delta-sigma DAC for only $100.

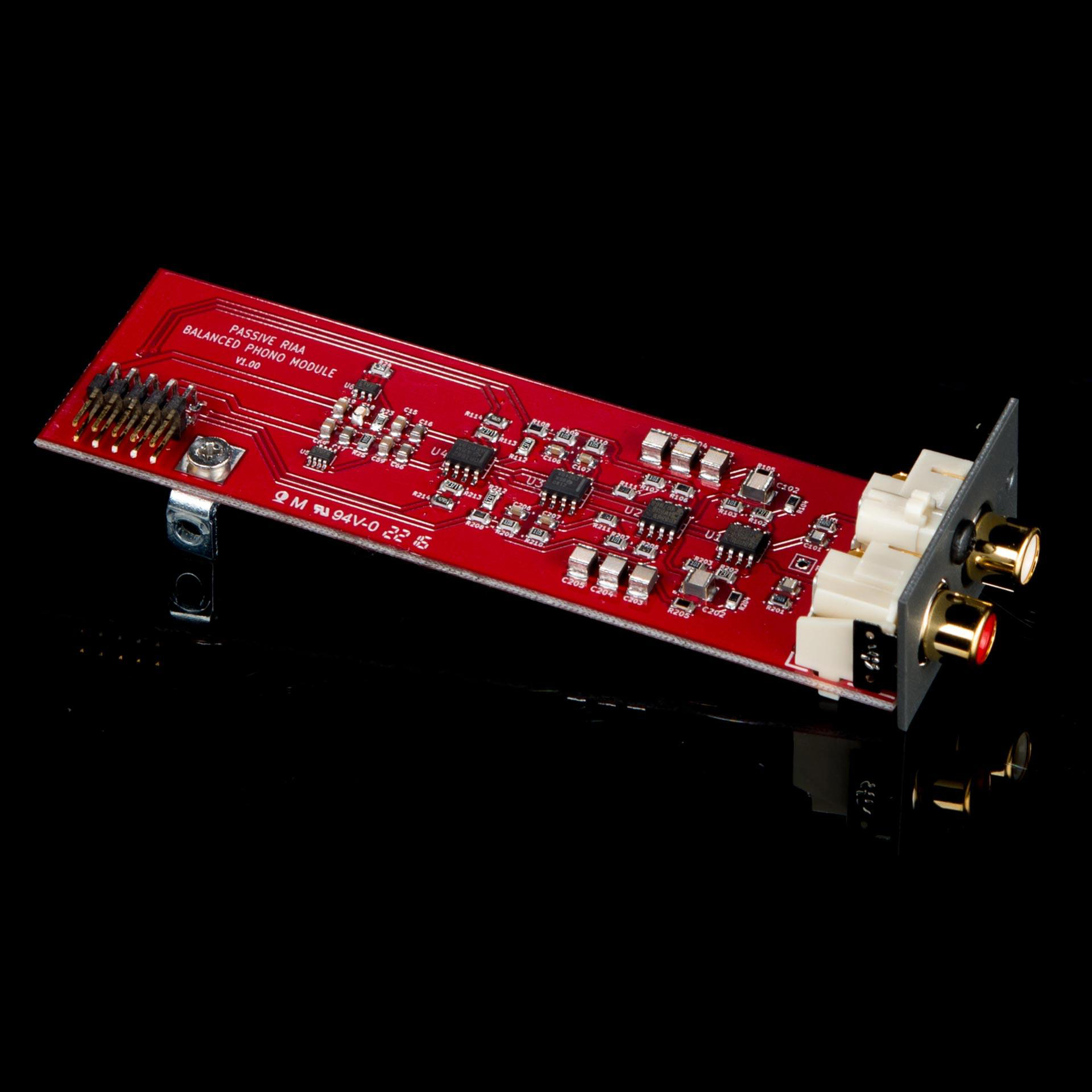

  • MM Phono. Or, choose the MM phono input module, for 42dB of gain and passive RIAA, for great phono sound, at only $100.

Unique Pivot Point Gain Stage
Jotunheim’s gain stage is a unique, inherently balanced, fully discrete current feedback topology that provides both balanced and single-ended output without the need for splitters or summers. It provides extremely wide bandwidth and excellent measured performance—together with the advantages of constant, low feedback across the entire audio band. What does all this techno-talk mean? In English, excellent performance from all inputs and outputs.

Designed and Assembled in USA
By “designed and assembled in USA” this is what we mean: the vast majority of the total production cost of Jotunheim—chassis, boards, transformers, assembly, etc—goes to US companies manufacturing in the US. Our chassis are made minutes from our facility. Our PCBs are done just over the hill from us, or done in NorCal. Our transformers are also made in California. You get the picture.
Xem thêm

Thông số kỹ thuật

Frequency Response 20Hz-20Khz, -0.1db, 2Hz-700KHz, -3dB
Balanced Headphone Output
  • Maximum Power, 16 ohms: 7500mW RMS per channel
  • Maximum Power, 32 ohms: 5000mW RMS per channel
  • Maximum Power, 50 ohms: 3000mW RMS per channel
  • Maximum Power, 300 ohms: 900mW RMS per channel
  • Maximum Power, 600 ohms: 500mW RMS per channel
Single-Ended Headphone Output
  • Maximum Power, 16 ohms: 2500mW RMS per channel
  • Maximum Power, 32 ohms: 1500mW RMS per channel
  • Maximum Power, 50 ohms: 800mW RMS per channel
  • Maximum Power, 300 ohms: 350mW RMS per channel
  • Maximum Power, 600 ohms: 175mW RMS per channel
THD <0.001%, 20Hz-20KHz, at 1V RMS
IMD <0.0015%, CCIR
Crosstalk >-70dB, 20 Hz-20KHz
SNR >109db, A-weighted, referenced to 1V RMS
Output Impedance Less than 0.1 ohms, balanced or SE, at both gain settings
Input Impedance >50K ohms
Gain
  • 2 (6dB)
  • 8 (18dB)

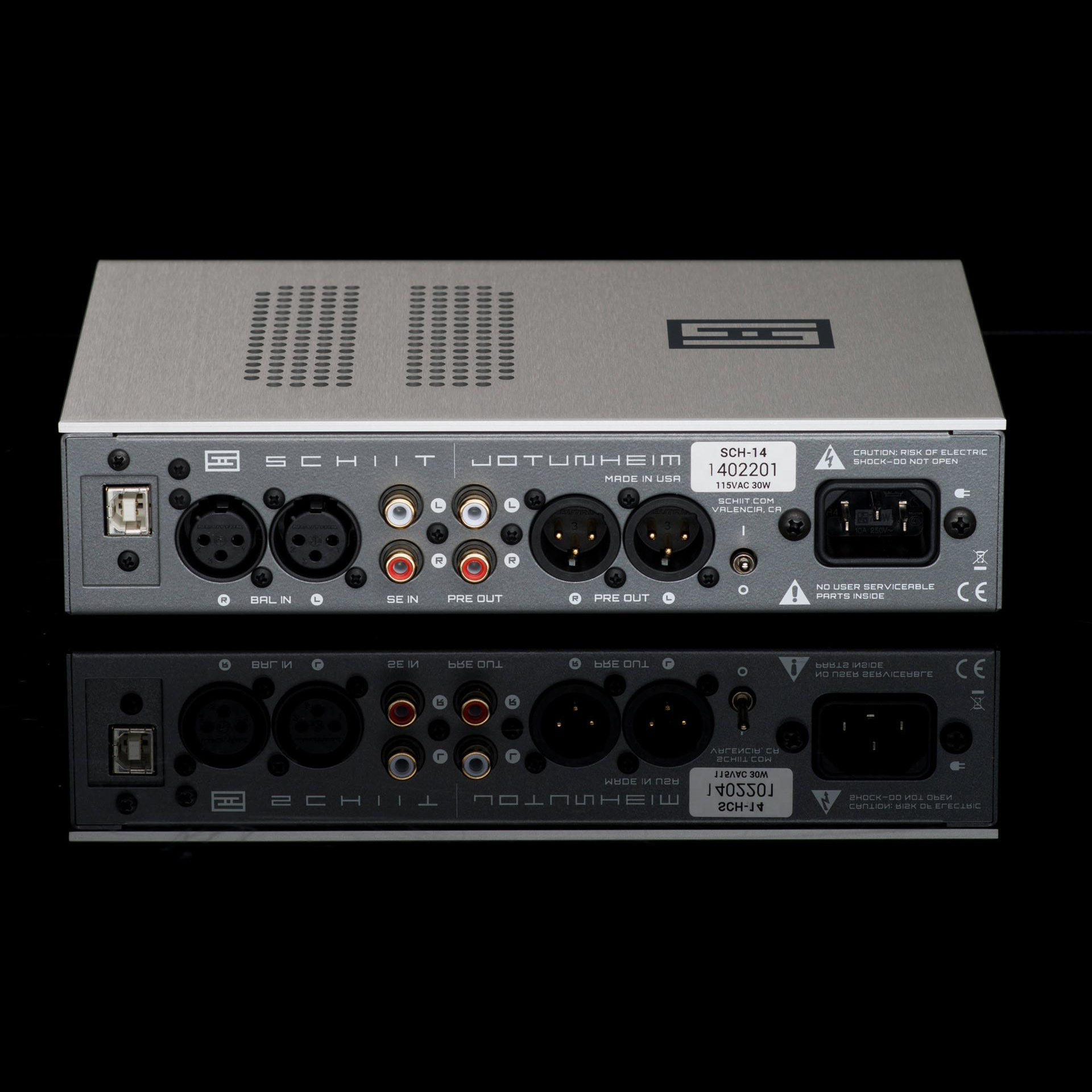

Inputs
  • Balanced XLR
  • Single-Ended RCA
Outputs
  • Balanced headphone (4-pin XLR)
  • Single-ended headphone (1/4” TRS)
  • Balanced line preamp
  • Single-ended line preamp
Gain Stage Proprietary Schiit Pivot Point™ fully discrete differential current-feedback topology

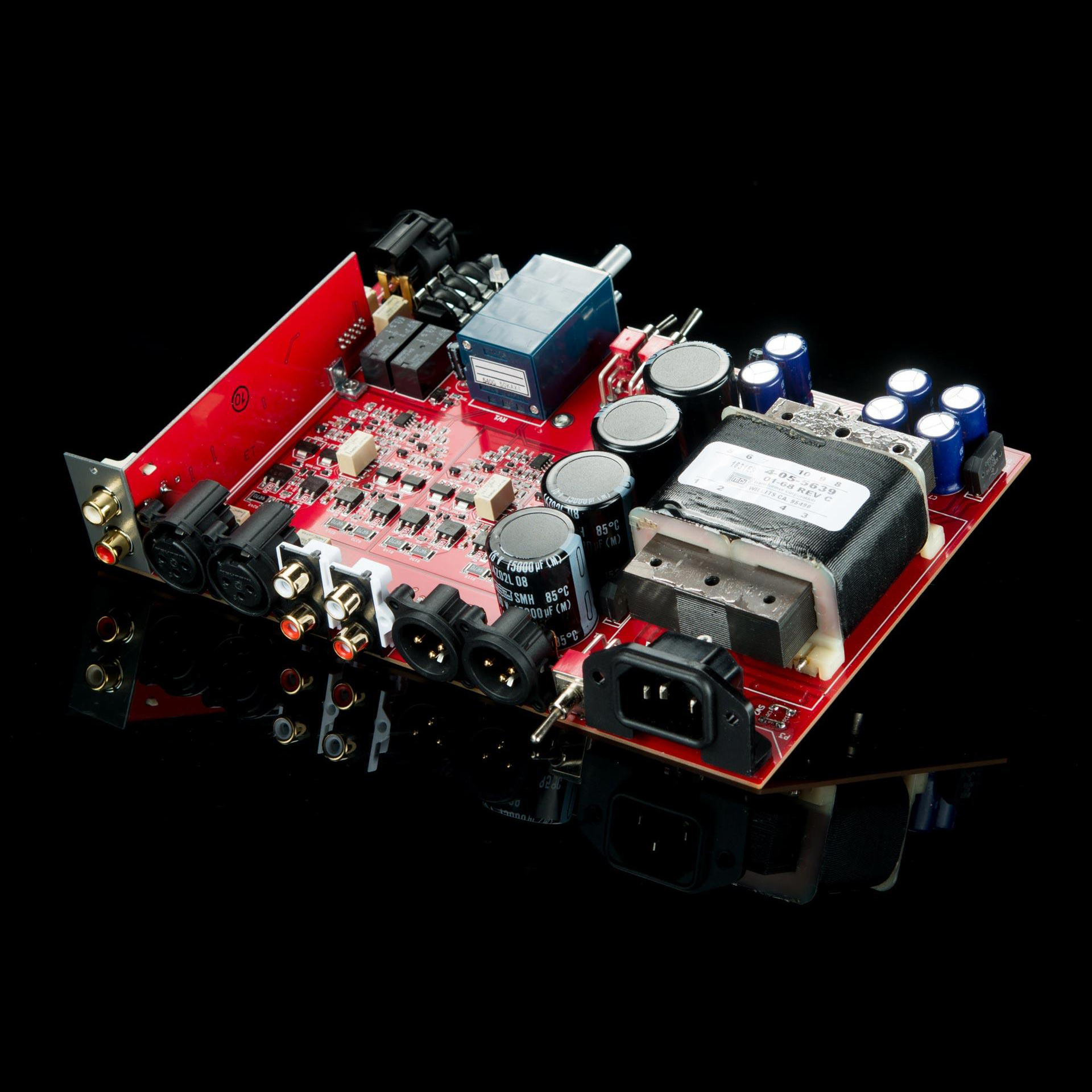

Power Supply One 48VA transformer with 6 stages of discrete or integrated regulation and over 70,000uF total filter capacitance
Power Consumption 25W typical
Size 9” x 6” x 2”
Weight 6 lbs

Optional Dual AK4490 DAC

USB Input Receiver C-Media CM6631A
D/A Conversion IC AK4490 x 2Input Capability: up to 24/192
Analog Output fully differential, active summing and filtering
Frequency Response 20Hz-20KHz, +/-0.1dB, 2-100kHz, -3dB
THD <0.001%, 20Hz-20KHz, full scale
S/N >108dB, referenced to 2V RMS, unweighted
IMD <0.001%, CCIR

Optional Multibit DAC

USB Input Receiver C-Media CM6631A
D/A Conversion IC Analog Devices AD5547 up to 24bit / 192kHz
Digital Filter Schiit Comboburrito Time- and Frequency-domain Optimized DSP filter
Frequency Response 20Hz-20KHz, +/-0.25dB, 2-100kHz, -3dB
THD <0.005%, 20Hz-20KHz, full scale
CCIR S/N >109dB, referenced to 2V RMS, unweighted
IMD <0.006%
