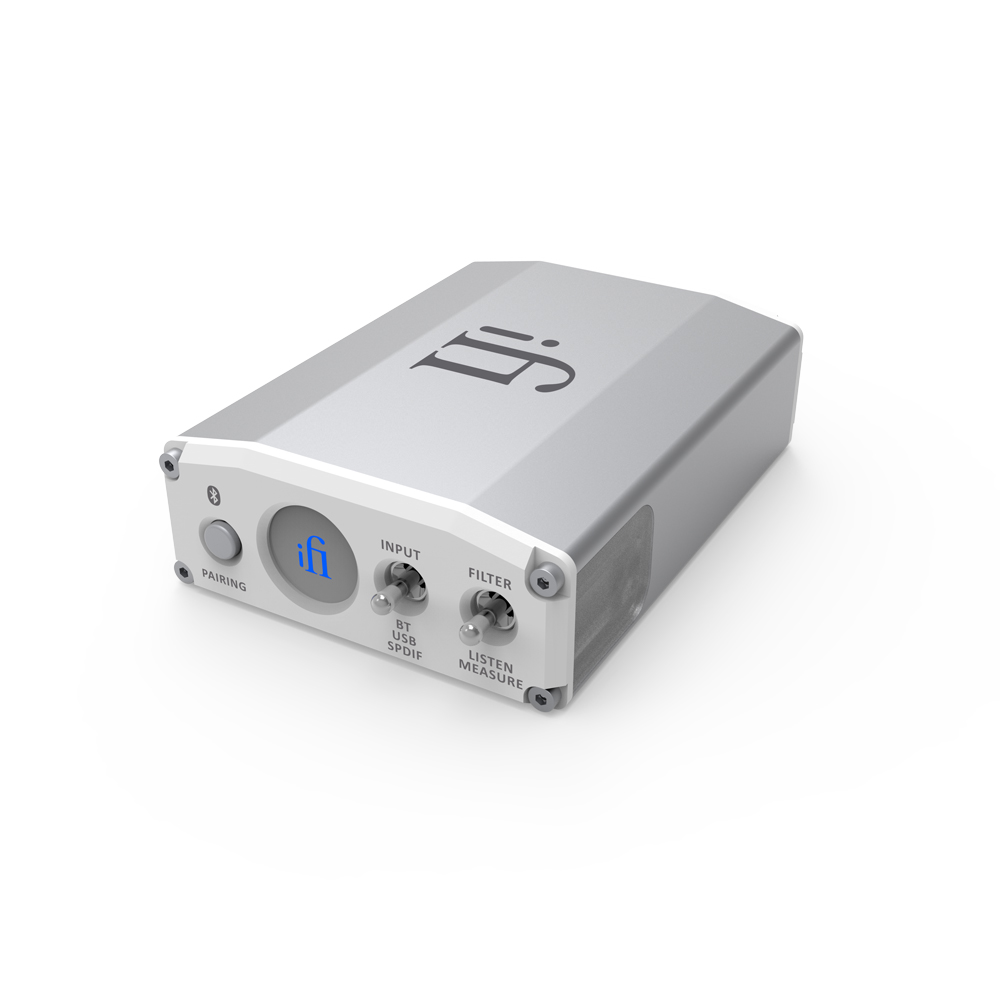

iFi Nano iOne

Thương hiệu

4.900.000

Bảo hành

Bảo hành 12 tháng

  • Designed for Home Entertainment Systems
  • High-Resolution Audio Playback

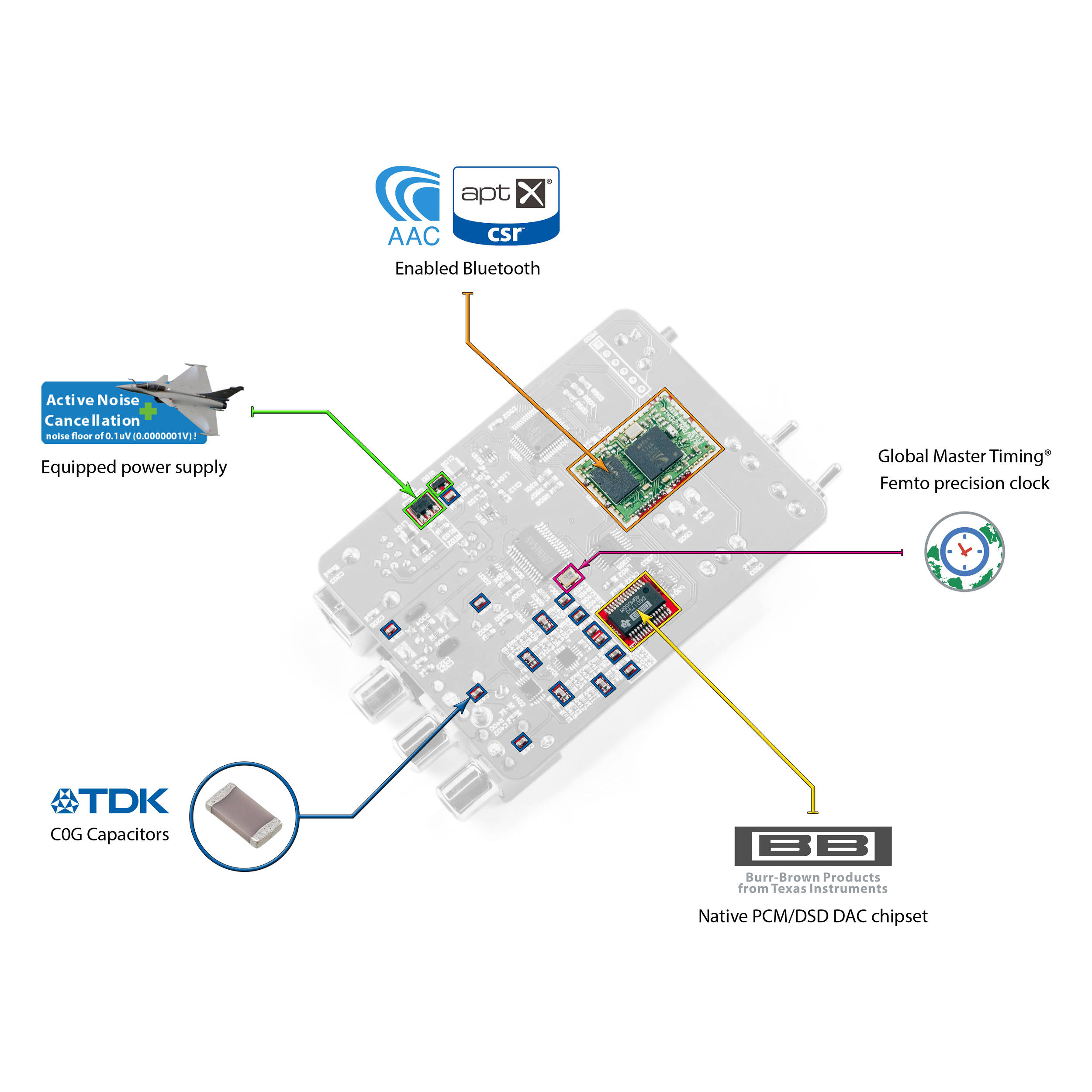

  • Burr-Brown True Native Chipset
  • Support for PCM, DSD & DXD
  • No Conversion of DSD Files
  • Bluetooth Streaming with aptX/AAC
  • RCA Outs for Consumer/Prosumer Speakers
  • Galvanically-Isolated S/PDIF Output
  • Femto Precision Clock System
  • Noise Suppression on Power Supply

Thông tin chi tiết







  • The Burr-Brown True Native® chipset means file formats remain unchanged. Listen to music as the artist intended in the format in which it was recorded.
  • Hi-Res True Native® playback of all music formats from MP3 to DSD256, PCM384 and DXD384.
  • Connect your phone or device wirelessly via aptX™ and AAC™ Bluetooth®. Whatever your device, we’ve got it covered.

Read more

  • Quiet! Active Noise Cancellation+® (ANC+) at work!
  • Exceptionally quiet power. The measured noise floor is 100x quieter than the common noise filter.

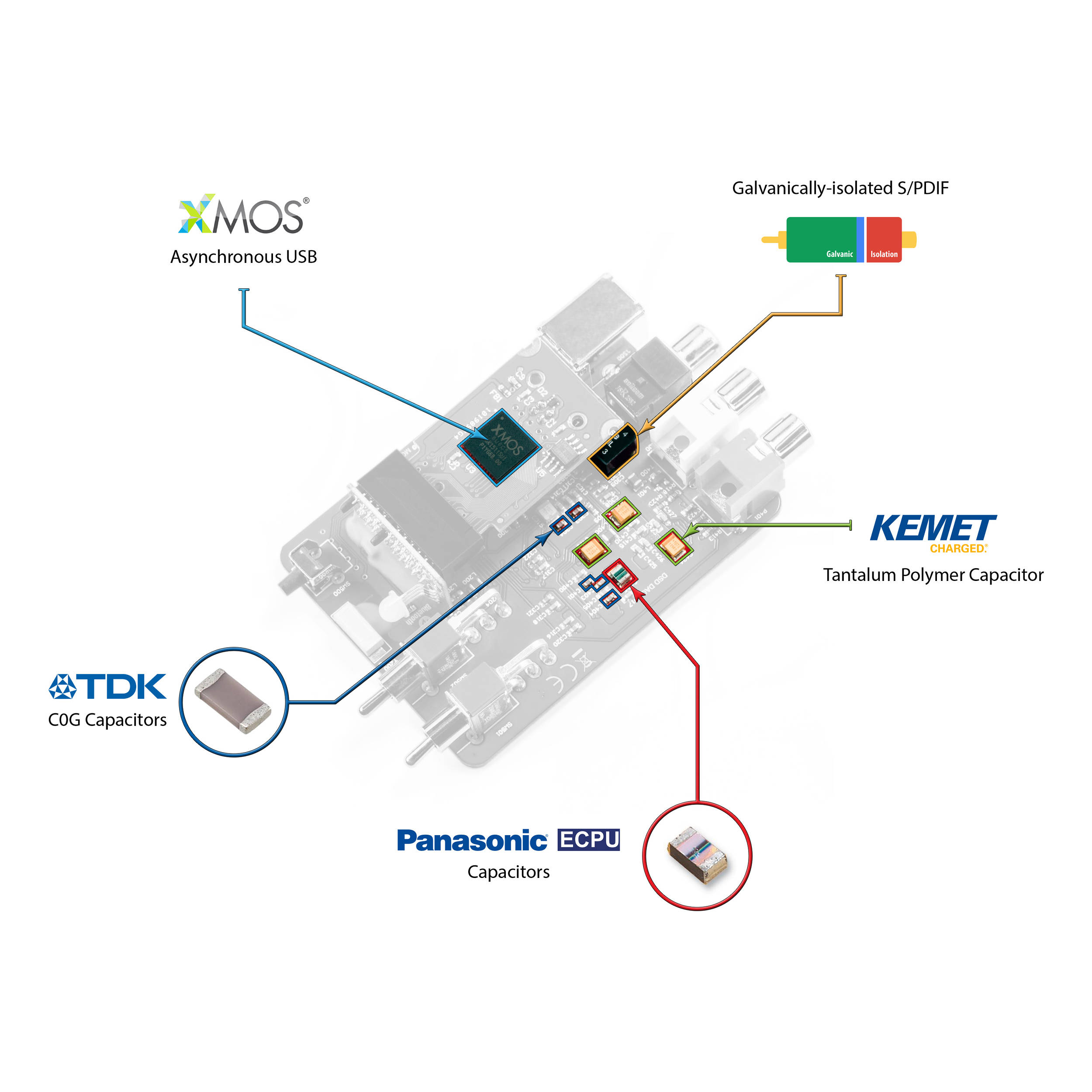

  • A galvanically isolated SPDIF output means that electrical circuits are separated to eliminate stray elements – a signal can pass but nothing else. Interference-free audio.
  • And with added REclock® and REgenerate® the signal remains true and strong.
  • We use our parent company AMR’s Global Master Timing® (GMT)/ Memory Buffer System. It represents a total ‘out of the box’ systematic digital solution that solves the problem of digital SPDIF jitter once and for all.
Xem thêm

Thông số kỹ thuật

Power Source:
  • USB Bus power, embedded AMR Active Noise Cancellation® technology
Formats:
  • 44.1/48/88.2/96/176.4/192kHz PCM
  • 2.8/3.1/5.6/6.2/11.2/12.4MHz DSD
  • 352/384kHz DXD
DAC System:
  • Bit-Perfect DSD & DXD DAC by Burr Brown (1-DAC Chip; 2-Channel; 4-Signals)

Filter

PCM:
  • Measure/Listen digital (selectable)
DSD:
  • Measure/Listen analogue (selectable)
DXD:
  • Bit-Perfect Processing, fixed filter
Input:
  • USB 3.0 compatible with USB 2.0
  • Bluetooth (TM) with aptX & AAC support Codec
  • S/PDIF RCA & Optical Combo

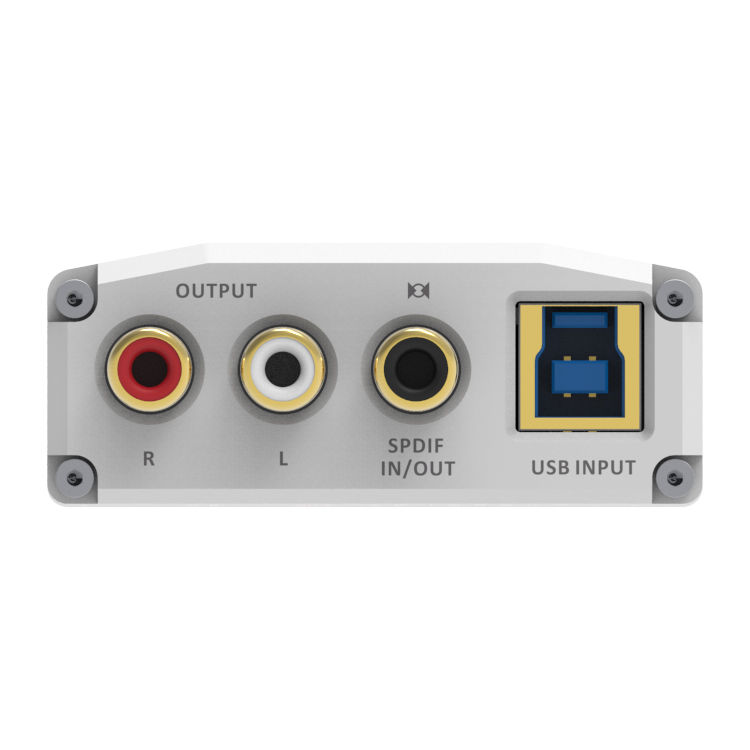

Output:
  • Coaxial S/PDIF for USB/Bluetooth (PCM up to192kHz)
  • Audio RCA L/R
Frequency Response:
  • 20Hz – 20kHz <+0/-0.5dB (44.1kHz SR, Measure Filter)
  • 1Hz – 44khz <+0/-3.0dB (>= 88.2kHz SR, Measure Filter)
Output Voltage @ 0dBFS:
  • 2.05V (+/-0.05V)
Dynamic Range:
  • 109dB (A)
Signal/Noise ratio:
  • 109dB (A) @ 0dBFS
THD & N @ 0dBFS:
  • < 0.0015% 10k Load
Output Impedance:
  • < 50Ω
Power Consumption:
  • < 2.5W
Dimensions:
  • 100 (l) x 64 (w) x 25.5 (h) mm
Weight:
  • 122g (0.27lbs)
