iFi Micro iDSD BL

Thương hiệu

13.900.000

Bảo hành

Bảo hành 12 tháng

Hết hàng

  • Portable High-Resolution Audio Playback
  • 2 x Burr-Brown DAC Chips
  • Support for MP3, PCM, DSD & DXD
  • S/PDIF, Optical & USB Connections
  • 1/4" Headphone Output
  • 2 x RCA Line Outputs
  • 3D+ & XBass+ Sonic Enhancements
  • AMR Femto-Precision Clock for Low Jitter
  • Built-In Battery with 6 to 12 Hour Life
  • Power Modes to Suit Most Headphones

Thông tin chi tiết







Hi-Res True Native® playback for all music formats from MP3 to DSD512, PCM768 and 2xDXD.
The Burr-Brown True Native® chipset means file formats remain unchanged. Listen to music as the artist intended in the format in which it was recorded.
Doubling the DAC chips results in 3dB lower noise floor and better channel separation. Together with power supply advancements and advanced channel interleaving, the noise floor of the micro iDSD BL has been halved.
All of this equals stellar sonic performance.

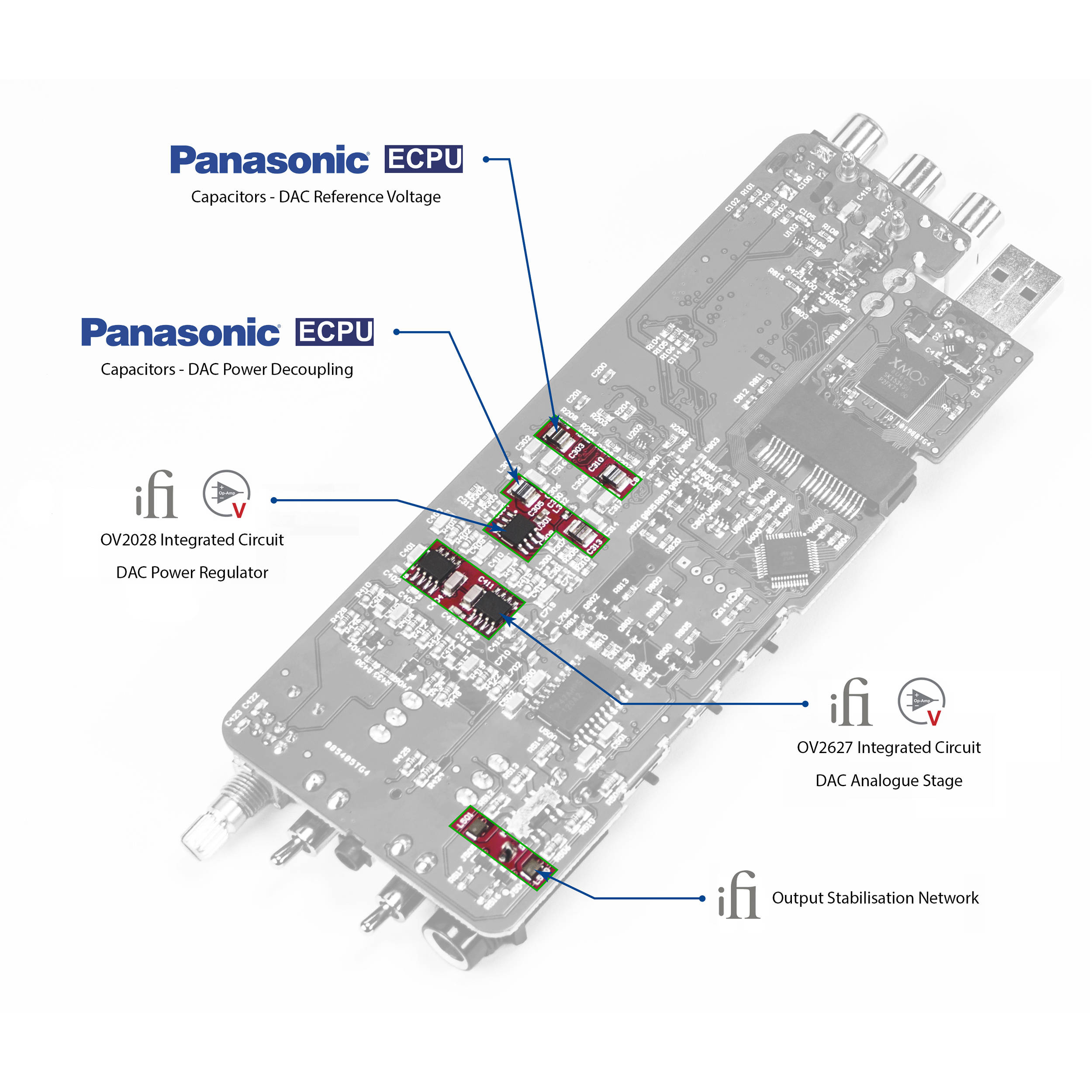

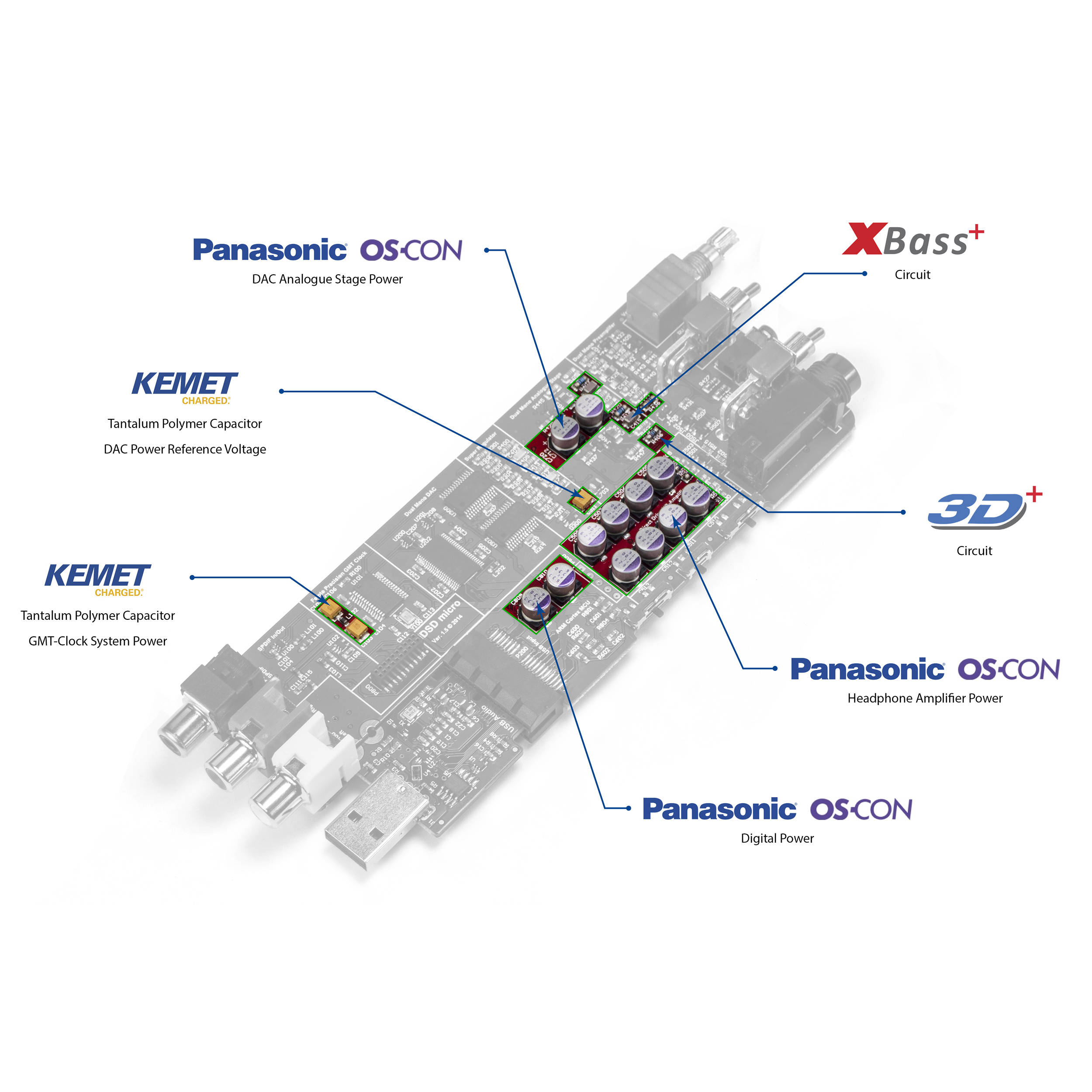

iFi always uses the best components possible. These OS-CON™ capacitors provide excellent noise reduction and have a long life span. They are not often found in products costing <US$1000.
Read more
With output power at 4,000mW, this headphone amplifier drives all headphones with ease. It has 3 power modes – Eco, Normal and Turbo. Power and gain can be dialed-in perfectly to suit ALL headphones.
This OV series operational amplifier is another example of an top-notch component used to get the best sound quality out of our products.
Read more
3D+ Holographic® delivers an immersive, deep soundstage
Read more about 3D+ Holographic®
XBass+® delivers a deep, tighter bass sound.
Read more about XBass+®
Enjoy high quality sound for up to 12 hours, even if you are using headphones requiring a lot of power such as the HifiMan HE-6 or as little as the Sennhesier IE-800.
Xem thêm

Thông số kỹ thuật

Inputs/Outputs

Inputs (rear)
  • USB 2.0 type A “OTG” Socket (with iPurifier® technology built-in)
  • Intelligent SPDIF® Coaxial
  • SPDIF Optical
  • Compatible with computers (Apple/Win/Linux), iPhone, iPod Touch, iPad and Android Devices, camera kit or USB-OTG cable required. (Full USB3.0 port compatible)
  • 3 Way combo SPDIF port (Coaxial In/Out; Optical In); Up to 192kHz PCM
Outputs (rear)
  • Audio RCA L+R
  • Intelligent SPDIF® Coaxial
  • Up to 192kHz PCM
Output (right side)
  • SmartPower® Socket
  • Fast charge all portable devices. Compliant with USB Battery Charging Standard 1.2 – 5V @ 1.5A

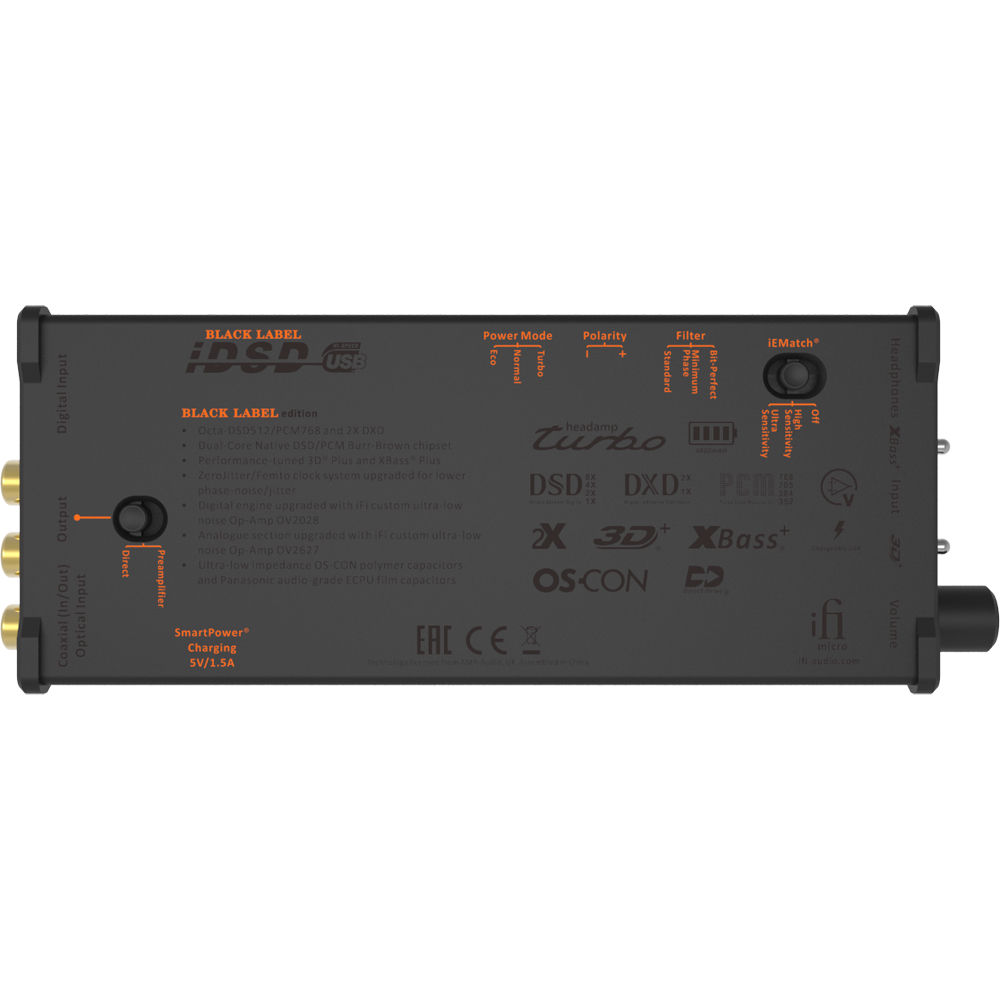

Controls

Controls (front)
  • HP Output
Audio 6.3mm Headphone Jack
  • Volume with Power On/Off switch
Precision analogue volume control <2dB Tracking error
  • 3.5mm Input
Auto disable the digital section when this is in use
  • X-Bass®
On/Off
  • 3D Holographic Sound®
On/Off Auto-switching for Speakers® and Headphones® (two separate and distinct circuits)

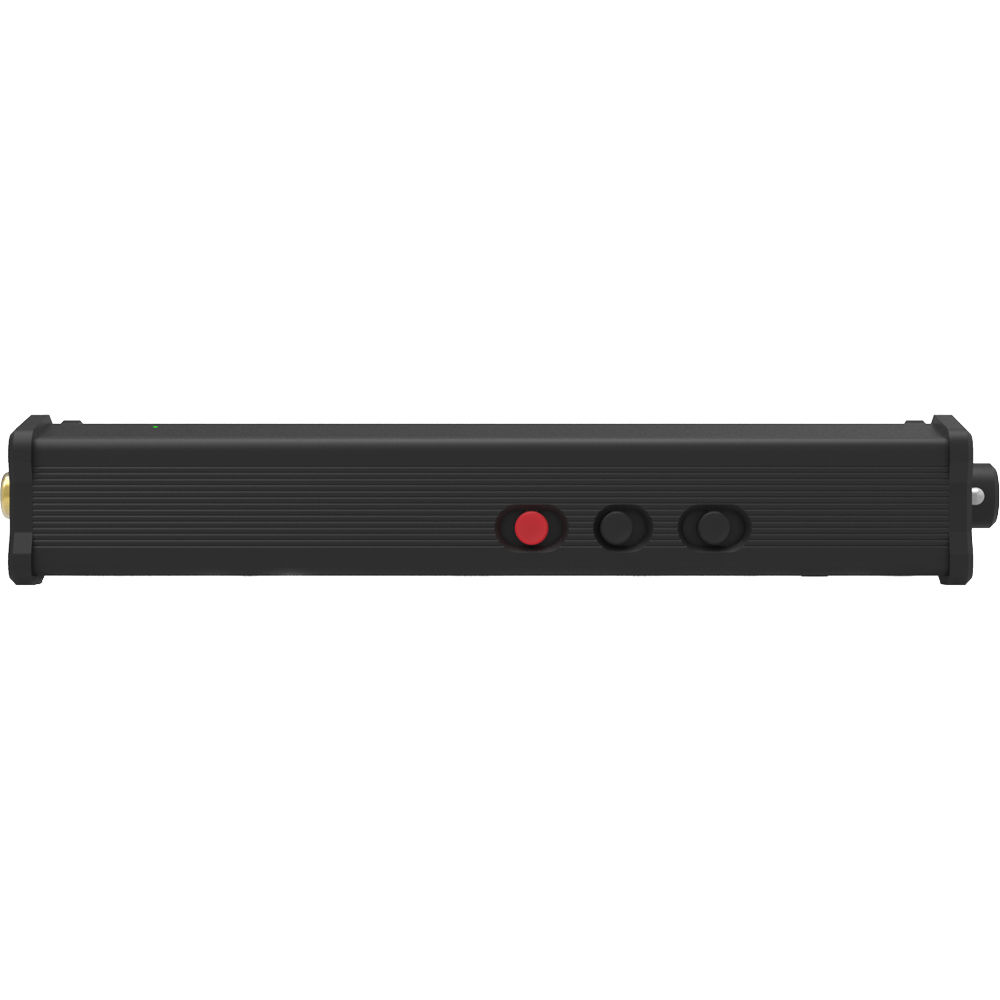

Controls (left side)
  • Power Mode
Turbo, Normal, Eco Computer controlled power and gain scaling
  • Polarity
Normal/Inverted
  • Filter
3 positions, 6 filters (see filter section below)
Controls (bottom)
  • Line Direct/Preamplifier
Preamplifier function Enable/Disable, 0/9dB gain selectable Fixed 2V or variable with up to 5V available
  • iEMatch®
Perfect-matching circuit for IEMs (eliminate hiss) Off / High Sensitivity Headphone / Ultra Sensitivity Headphone

DAC section

  • DAC
  • Dual-core DSD, DXD, PCM DAC by Burr Brown
  • Bit-Perfect DSD processing, Bit-Perfect PCM processing
2-DAC Chip; 4-Channel; 8-Signals, custom interleaving for maximum SNR
  • Clock
  • Ultra low jitter GMT computer controlled Femto Clock
RMS jitter 12kHz – 1MHz < 280 Femtoseconds
  • Audio Formats
  • DSD 512/256/128/64 (24.6/22.6/12.4/11.2/6.2/5.6/3.1/2.8)
  • DXD 2x/1x (768/705.6/384/352.8kHz)
  • PCM 768/705.6/384/352.8/192/176.4/96/88.2/
    48/44.1kHz
All native decoding, no internal hardware conversion

Filters

  • PCM
  • Bit-Perfect Processing/Minimum Phase/Standard
Digital filters selectable
  • DSD
  • Extreme/Extended/Standard Range
Analogue filters selectable
  • DXD
  • Bit-Perfect Processing
Fixed analogue filter



Specifications (DAC Section)

  • Dynamic Range (Line)
  • >117db(A)
  • THD & N (0dBFS Line)
  • <0.003%
  • Output Voltage (Line)
  • >2V
  • Output Impedance (Zout)
  • < 240Ω
  • Jitter (correlated)
  • Below AP2 test set limit



Headphone Power Output

HP Amp Output Power (max) Power (continuous.)
  • Turbo mode
  • 10.0V/4,000 mW @ 16 Ohm
  • >1560 mW @ 64 Ohm
  • > 166 mW @ 600 Ohm
  • Normal mode
  • 5.5V/1,900 mW @ 16 Ohm
  • > 950 mW @ 32 Ohm
  • > 100 mW @ 300 Ohm
  • Eco mode
  • 2.0V/500 mW @ 8 Ohm
  • > 250 mW @ 16 Ohm



Specifications (Headamp Section)

  • Dynamic Range (HP)
  • >115dB(A) (Eco Mode, 2V Out)
  • THD &N (HP 500mW/16R)
  • < 0.008%
  • Output Voltage (HP)
  • >8V (Turbo Mode)
  • Output Impedance (Zout)
  • <1Ω (iEMatch not engaged)
  • Maximum Output Power
  • 4,000mW @ 16 Ohm Load
when using sinewave testing the micro iDSD BL may engage protection circuits
  • Continuous Output Power
  • 1,000mW @ 64 Ohm Load
