| MQA: | decoder and renderer (on all digital inputs) |
|---|
| Weight: | 1.90 kg / 4.19 lb |
|---|
| DAC THD: | -121 dB (0,00009 %); THD+N: -115 dB (unweighted) |
|---|
| DAC chip: | ESS Sabre ES9038PRO |
|---|
| Operation: | Fully balanced, proprietary IC power amp |
|---|
| Dimensions: | 21.7 x 20.6 x 5 cm / 8.6″ x 8.1″ x 2.0″ (WxDxH) |
|---|

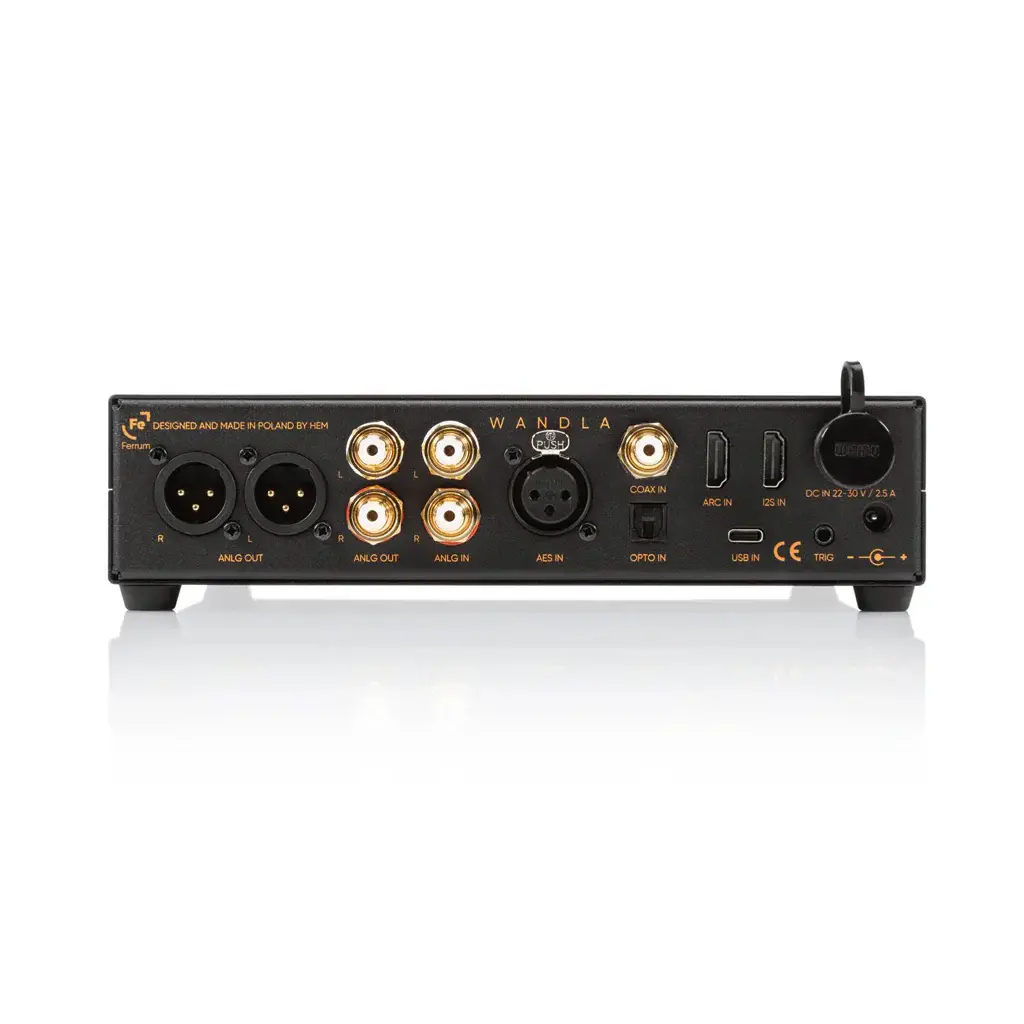

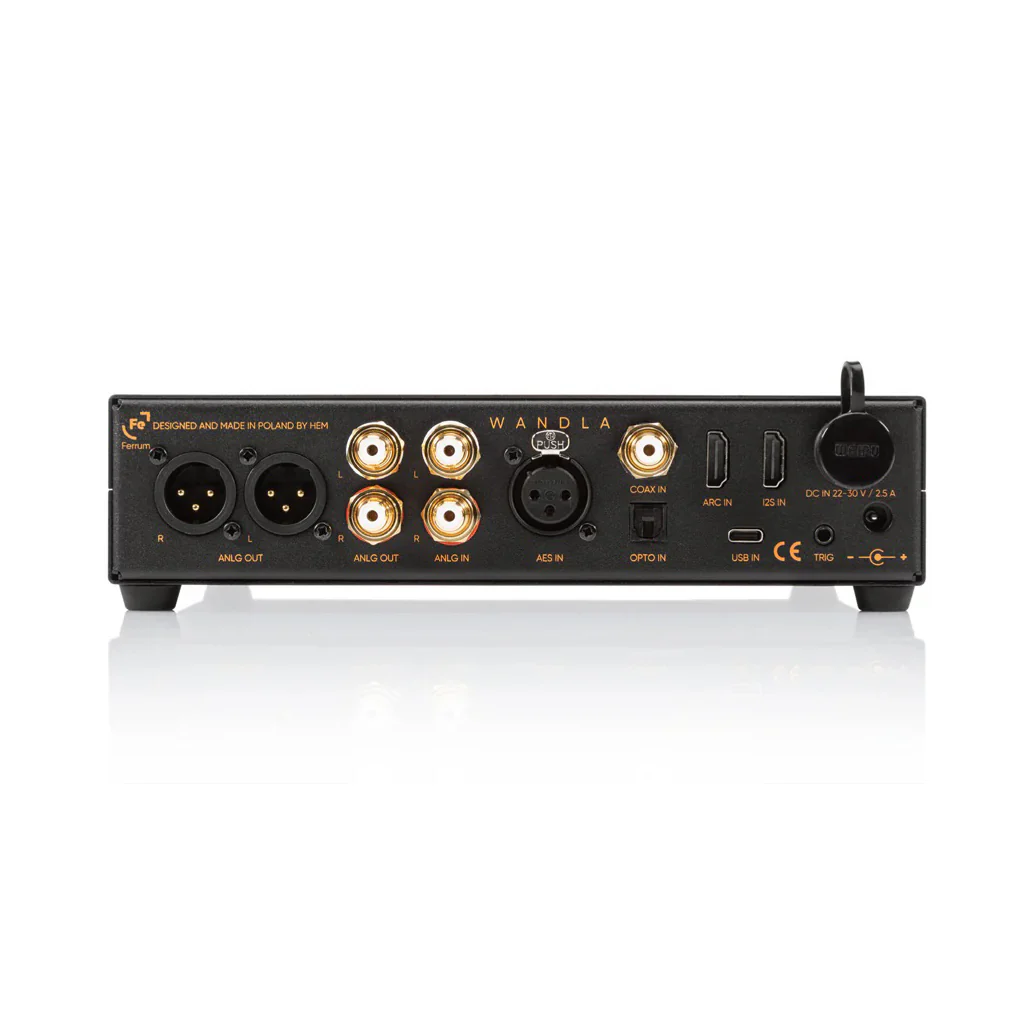

| Line outputs: | balanced XLR; unbalanced RCA |
|---|
| Power inputs: | 5.5/2.5 mm DC connector center positive proprietary FPL 4-pin DC connector (FPL) 22-30 VDC |
|---|
| THD balanced: | <p>0.00016 % / -116 dB, 10 mW into 50 Ω<br>
0.00020 % / -114 dB, 100 mW into 50 Ω </p> |
|---|
| Analog inputs: | RCA |
|---|
| Dynamic Range: | 122 dB |
|---|
| Power adapter: | 100-240 VAC to 24 VDC |
|---|
| DAC resolution: | 768 kHz / 32 bit, DSD 512 |
|---|
| Remote control: | included |
|---|
| Volume control: | analogue with bypass option / digital for DAC operation only |
|---|
| Digital inputs: | <p>AES/EBU (up to 192 kHz / 24 bit, DoP 64)<br>
Optical S/PDIF (up to 96 kHz / 24 bit)<br>
Coaxial S/PDIF (up to 192 kHz / 24 bit, DoP 64)<br>
USB-C (up to 768 kHz / 32 bit, DSD 512, DoP 256)<br>
ARC (up to 192 kHz / 24 bit), TV input with CEC<br>
I2S (up to 768 kHz / 32bit, DSD 512, DoP 256), PS Audio® compatible </p> |
|---|
| THD unbalanced: | <p>0.00022 % / -113 dB, 10 mW into 50 Ω<br>
0.00022 % / -113 dB, 100 mW into 50 Ω </p> |
|---|
| Analog input THD: | -123 dB @ 2 V RMS output level |
|---|
| Analog input Vmax: | 9.5 V RMS (2 – 3.5 V RMS recommended) |
|---|
| Dyn. range analog: | 127 dB (A-weighted) |
|---|
| Line Output level: | @0 dBFS, 1 kHz sine 10 V RMS balanced, 5 V RMS unbalanced |
|---|
| Analogue input imp: | 47 kΩ |
|---|
| Dyn. range digital: | 122 dB (A-weighted) |
|---|
| Power consumption: | <p>13 W idle (with amp powered off)<br>
18 W idle (with amp powered on)<br>
35 W max</p> |
|---|
| HP Output impedance: | 1 Ω balanced |
|---|
| DAC Output Crosstalk: | -120 dB for 1 kHz, better than -100 dB for 20 Hz – 20 kHz |
|---|
| Line Output impedance: | 44 Ω balanced |
|---|
| Output Power Balanced: | 3.5 W into 50 Ω |
|---|
| Line Output level (RED): | @0 dBFS, 1 kHz sine 4 V RMS balanced, 2 V RMS unbalanced |
|---|
| Output Power Single Ended: | 1 W into 50 Ω |
|---|
| Frequency response on analog inputs: | 10 Hz – 200 kHz +/- 0.1 dB |
|---|
