ddHiFi TC44A-Redefining: 4.4

4.4mm Miniaturization Realized through Exquisite Technique

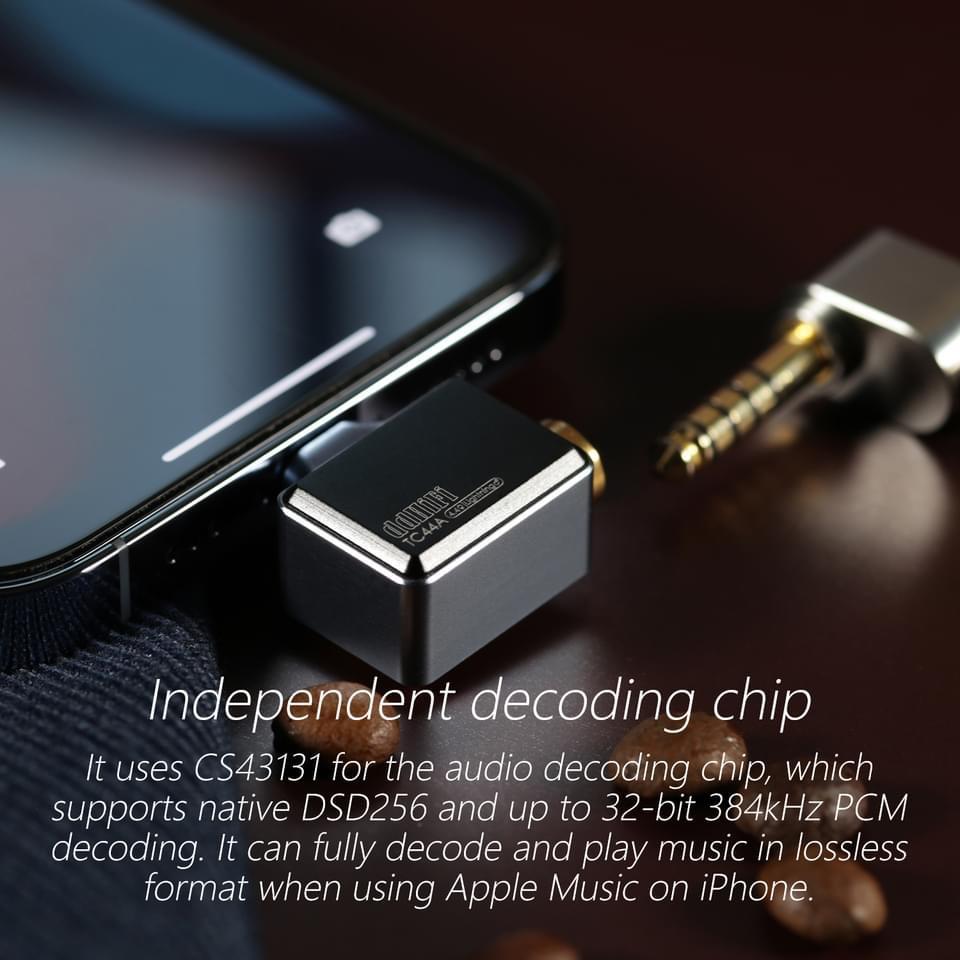

Independent decoding chip

It uses CS43131 for the audio decoding chip, which supports native DSD256 and up to 32-bit 384kHz PCM decoding. It can fully decode and play music in lossless format when using Apple Music on iPhone.

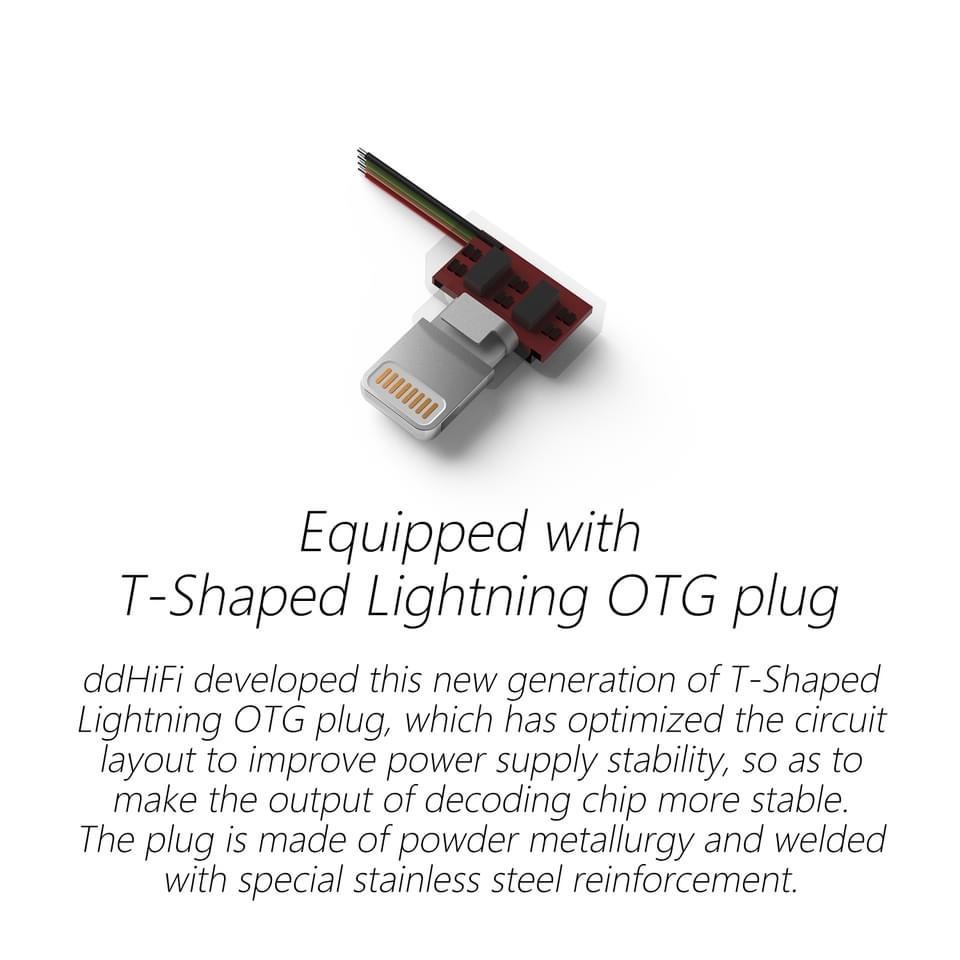

Equipped with T-Shaped Lightning OTG plug

ddHiFi developed this new generation of T-Shaped Lightning OTG plug, which has optimized the circuit layout to improve power supply stability, so as to make the output of decoding chip more stable. The plug is made of powder metallurgy and welded with special stainless steel reinforcement.

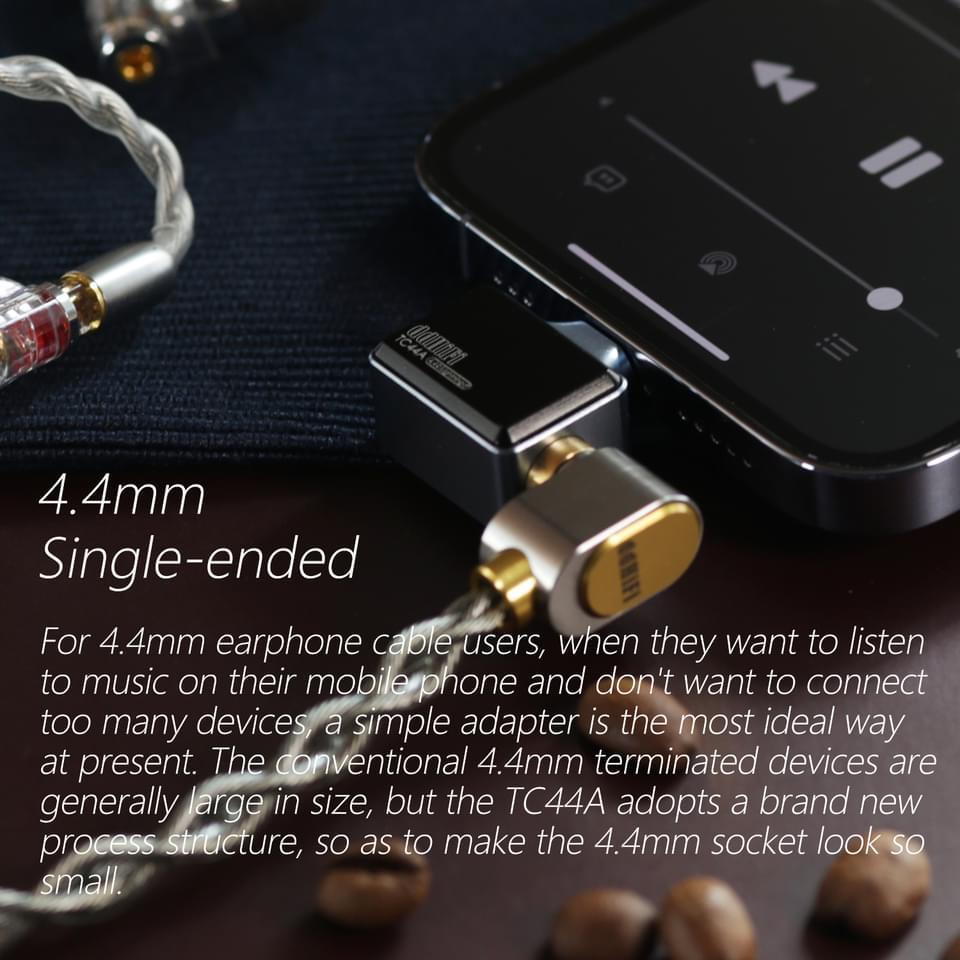

4.4mm single-ended output

For 4.4mm earphone cable users, when they want to listen to music on their mobile phone and don't want to connect too many devices, a simple adapter is the most ideal way at present. The conventional 4.4mm terminated devices are generally large in size, but the TC44A adopts a brand new process structure, so as to make the 4.4mm socket look so small.

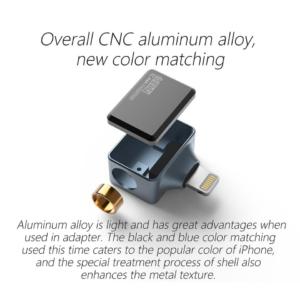

Overall CNC aluminum alloy, new color matching

Aluminum alloy is light and has great advantages when used in adapter. The black and blue color matching used this time caters to the popular color of iPhone, and the special treatment process of shell also enhances the metal texture. The gold ring at the socket is also the exclusive decoration of the 4.4mm adapter.

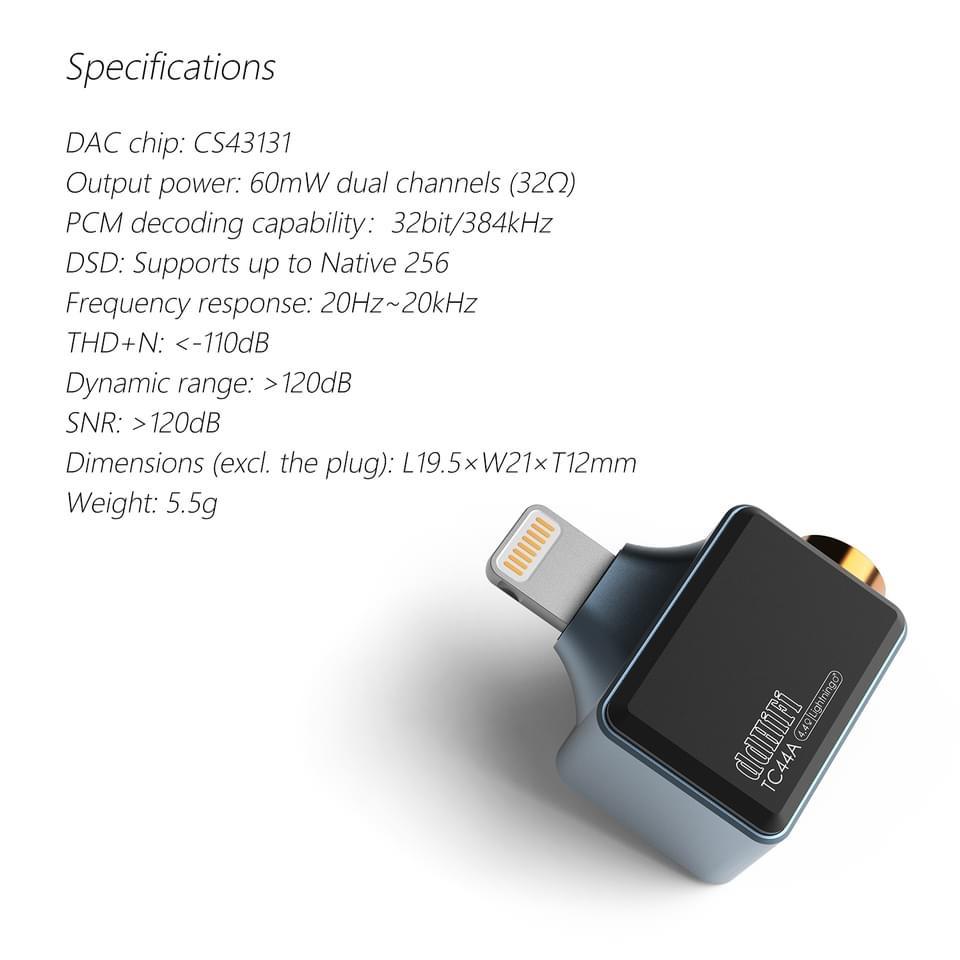

Specifications

DAC chip: CS43131

Output power: 60mW dual channels (32Ω)

PCM decoding capability：32bit/384kHz

DSD: Supports up to Native 256

Frequency response: 20Hz~20kHz

THD+N: <-110dB

Dynamic range: >120dB

SNR: >120dB

Weight: 5.5g

Dimensions (excl. the plug): 19.5mm×21mm×12mm (LxWxT)
