Clearaudio Nano Phono V2
Thương hiệu Clearaudio
10.550.000 ₫
Bảo hành 12 Tháng
- Amplification: 54 to 68 dB (MC - Mode) - 34 to 48 dB (MM - Mode)
- Inputs / outputs: asymmetrical (RCA)
- MM / MC - input: switchable (at bottom) - •Input load: 47 kO / 220pF / MM
- S/N: 70 dB ("A" Weighted) - Channel separation: > 80 db (1 kHz)
- Dimensions (W/D/H in mm): 85 x 106 x 25 - Weight: 500 g (Phonostage and power supply)
Vui lòng liên hệ Nhật - 0977 043 608 để biết thêm chi tiết
Thông tin chi tiết
Clearaudio Nano Phono V2 isn’t ruffled by anything. External interferences are no longer an issue with this fine piece of engineering.
Features of Nano Phono V2
Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.

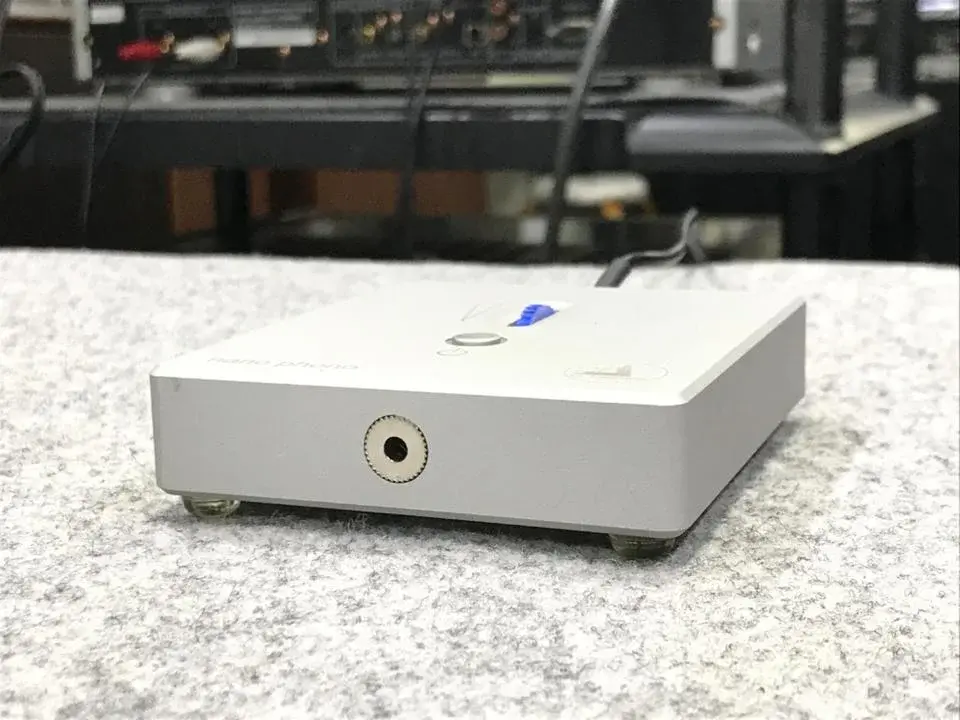

Clearaudio Nano Phono V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.
Thông số kỹ thuật
| AMPLIFICATION | 34 dB (MM mode) |
|---|---|
| 54 dB (MC mode) | |
| INPUT LOAD | 47 kOhm / 220 pF / MM mode |
| User MC mode | |

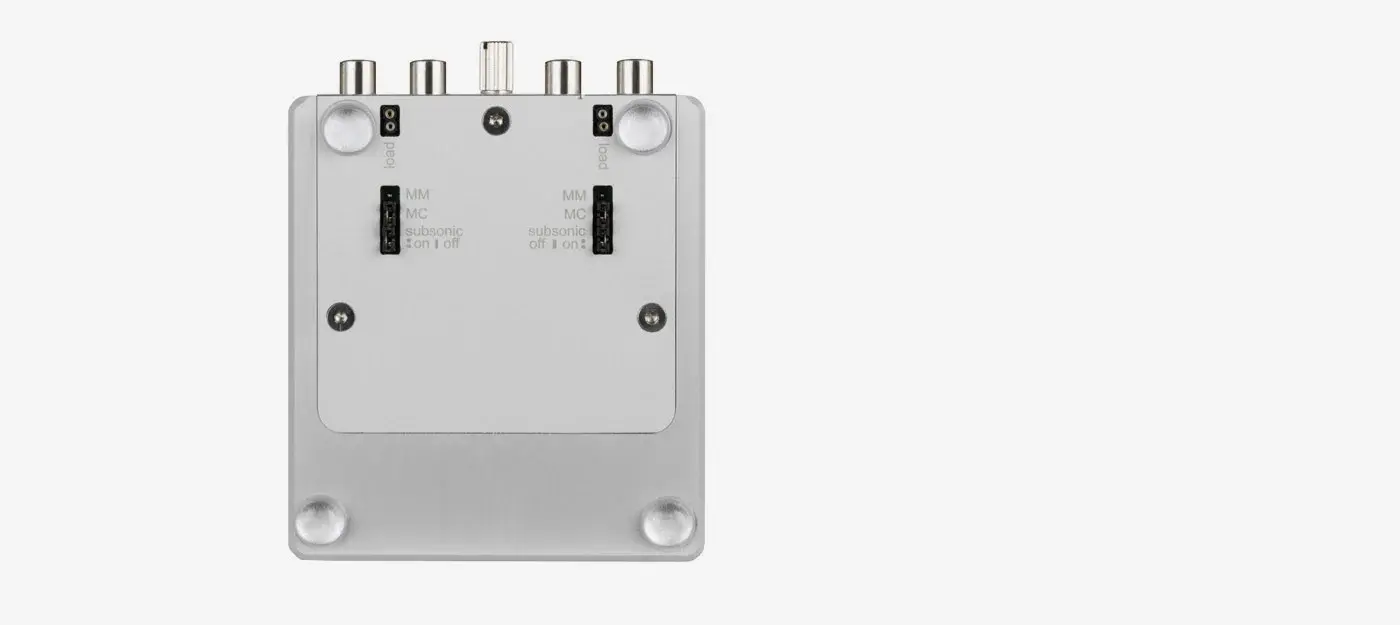

| MM / MC INPUT | switchable (at bottom) |
| SUBSONIC FILTER | switchable (at bottom) |
| RIAA | Nach RIAA (Zeitkonst.: 75 μs / 318 μs / 3180 μs) |
| RIAA ACCURACY | ± 0.4dB @ 20Hz-50kHz |
| THD | < 0,04% |
| HEADROOM | 18 dB / MC |
| SIGNAL TO NOISE RATIO | 81 dB (A) (MM – Mode) |
| 70 dB (A) (MC – Mode) | |
| CHANNEL SEPARATION | > 80dB @ 1kHz |
| MAX. OUTPUT VOLTAGE | 10V eff. (1kHz) |
| POWER CONSUMPTION | Max. consumption: 2.3 Watt |
| in operation: 2.3 Watt | |
| Standby mode: < 0.3 Watt | |
| Off mode: 0.0 Watt | |
| POWER SUPPLYPOWER SUPPLY | ±18V DC / 300mA (external power supply) |
| OUTPUTS | unbalanced (RCA) |
| WEIGHT | Approx. 500 g (preamp and power supply) |
| DIMENSIONS (W/D/H in mm) | 85 x 106 x 25 |
