Chord BLU MKII

Thương hiệu

259.000.000

283.800.000

-9%
Bảo hành

Bảo hành 12 tháng

Trả góp 0%
The Blu MkII is a compact, FPGA-based upsampling CD transport which offers the world’s most advanced filter technology. Used with DAVE, the combination delivers class-leading CD sound quality and technical performance.

Unboxing Chord BLU MKII

Thông tin chi tiết

Put simply, the Blu MkII upscaling CD transport sets new standards for CD sound quality by using the very latest FPGA technology to implement advanced proprietary filtering and upscaling techniques. Our next-generation CD transport incorporates a powerful new FPGA core with extraordinary capability.

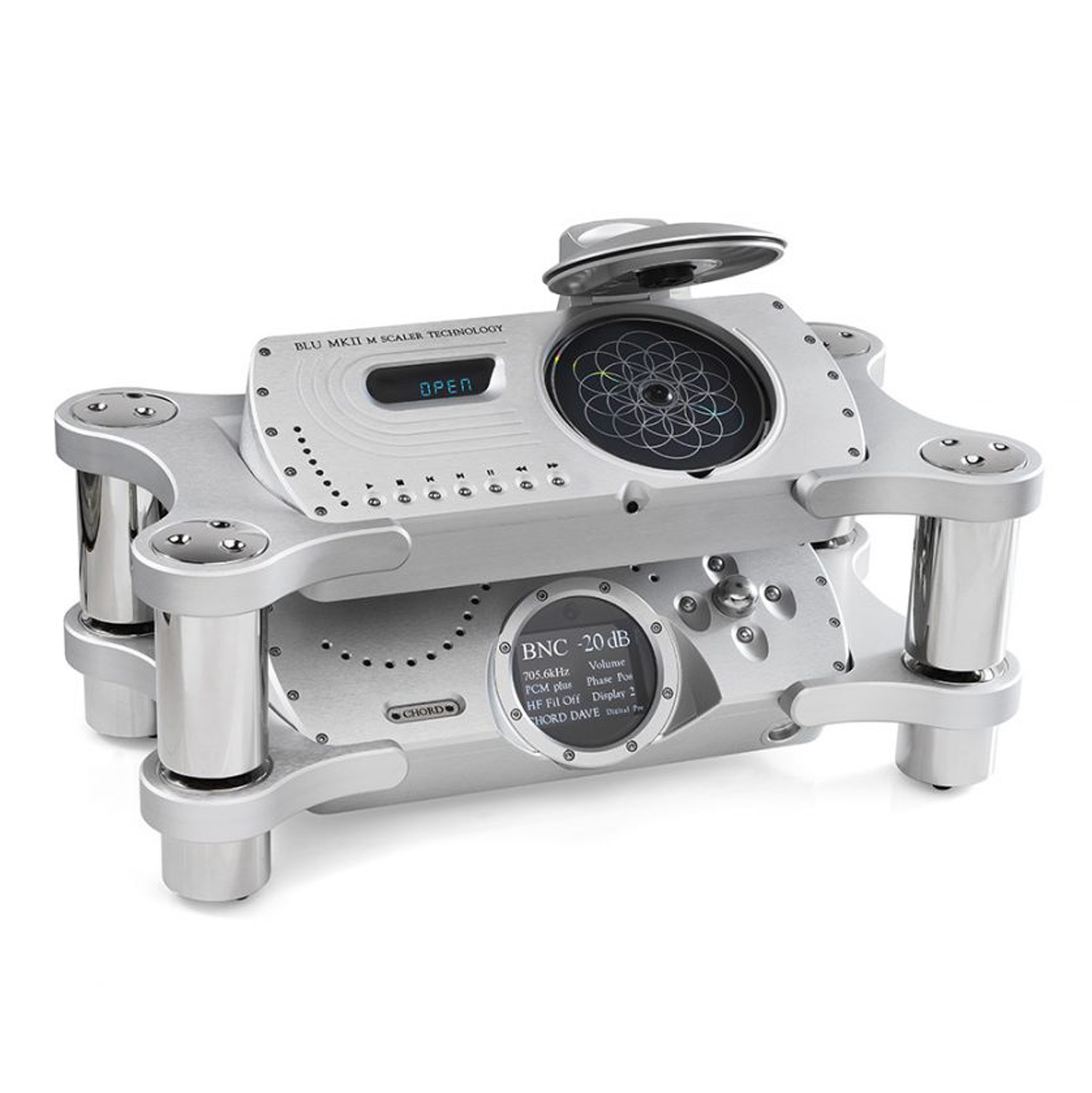

Blu MkII’s sophisticated WTA (Watts Transient Alignment) filtering and upscaling algorithms can output digital data at 705.6kHz (16 x CD’s 44.1kHz native resolution). When partnered with the critically acclaimed DAVE DAC/preamp, with its 705.6kHz-capable digital inputs, the Blu MkII sets a new technical benchmark for CD performance, while redefining sound quality from the medium.

At the heart of the Blu MkII lies an enormously powerful Xilinx FPGA. Rob Watts’ (Chord’s Digital Design Consultant) has used this to create his exclusive WTA M-Scaler technology, which incorporates the most advanced filter of its kind in the world. The Xilinx FPGA has also enabled a key breakthrough in tap-length (the technical indicator of how complex the interpolation filter is) taking Blu MkII to an unprecedented 1,015,808 taps.

A comprehensive suite of high-performance connectivity is offered and the Blu MkII also features a USB digital input, meaning that it can also be used a standalone high-performance upsampler, for use with other digital sources.

Further features include Chord Electronics’ legendary proprietary high-frequency switching power supply and a dedicated CD-only laser mechanism for an uncompromising performance.

Xem thêm

Thông số kỹ thuật



Chipset
  • Chord Electronics custom coded Xilinx XC7A200T FPGA
Tap-length
  • 1,015,808 (16FS filter)
FPGA current draw
  • 10amps
Frequency response
  • 0Hz (DC) – 20kHz +/- 0.0000001dB
In-band ripple 0Hz-20kHz
  • +/- 0.0000002dB
Stop band rejection
  • -135dB
THD and noise (24bit input)
  • -144dB
Noise 2.6 uV ‘A’ weighted
  • No measurable noise floor modulation
Signal to noise ratio
  • 126dB ‘A’ Weighted
Power supply
  • 90v AC – 24v AC Auto-Switching
Power consumption
  • 30w
Weight
  • 7kg
Dimensions
  • 333.5mm (W) x 98.5mm (H) x 159 (D)
Materials
  • Precision machined Choral aluminium casing designed by John Franks
CD Resolution
  • 44.1kHz – 705.6kHz (user configurable)
Inputs
  • 1x USB input: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, & 768kHz
  • 1x BNC S/PDIF: 44.1kHz – 384kHz (upsampled)
Outputs
  • 1x Single AES Option: 44.1kHz & 88.2kHz
  • 1x Dual AES Option: 88.2kHz & 176.4kHz
  • 1x Single BNC S/PDIF Mode: 88.2kHz, 176kHz, & 352.8kHz
  • 1x Dual BNC S/PDIF Mode: 176.4kHz, 352.8kHz, & 705.6kHz
Outputs
  • 1x Single AES Option: 44.1kHz & 88.2kHz
  • 1x Dual AES Option: 88.2kHz & 176.4kHz
  • 1x Single BNC S/PDIF Mode: 88.2kHz, 176kHz, & 352.8kHz
  • 1x Dual BNC S/PDIF Mode: 176.4kHz, 352.8kHz, & 705.6kHz
Selectable upsampling
  • 1x selectable switch providing three sample rates
Dither
  • On/Off (Only operational with 16bit source)
